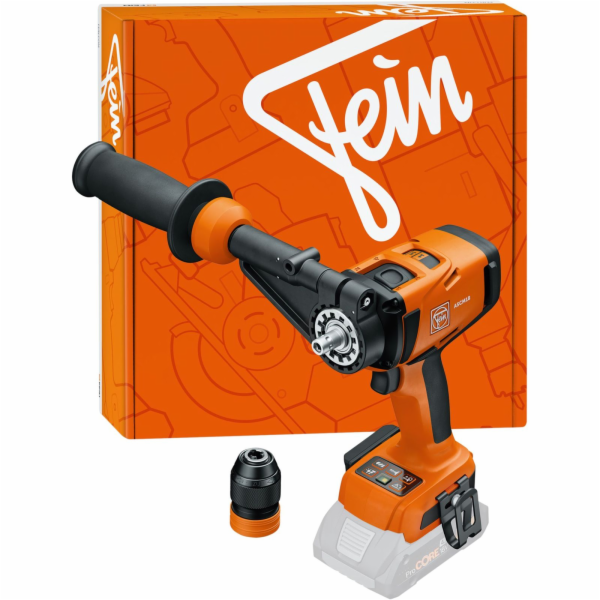

Fein ASCM18-4QM AS N00 Akku-Bohrschrauber

Maximální zatížení na 1. rychlost otáček (min-1): 430
Maximální zatížení na 2. rychlost otáček (min-1): 850
Max. počet otáček 3. stupně (min-1): 2000
Max. volnoběžné otáčky 4. rychlostního stupně (min-1): 4000
Měkký točivý moment (Nm): 50
Tvrdý točivý moment (Nm): 70
Maximální točivý moment (Nm): 70
Nastavení točivého momentu: 15 + 1
Max. průměr šroubu (mm): 10
napětí akumulátoru: 18
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ne
Blesková elektronická brzda: ano
LED osvětlení: ano
Akustický tlak: 75,9
Typ: Vrtací šroubovák
Způsob provozu: Aku baterie
Držák nástroje: QuickIN / Bohrfutter
Rozpětí vrtáku min./max. (mm): 1,5 / 13
Barva: orange / schwarz
Hmotnost (kg): 1.3

FEIN ASCM 18-4 QM AS Cordless Drill Driver without Charger and without Battery

You work with a tool that offers strong power in a compact size. The motor is low-wear and supports precise results in metal and wood work. The QuickIN interface allows fast changes for different tasks. This cordless drill driver is suitable for demanding work areas.

Strong power for different materials
The 4-speed drive reaches up to 4000 rpm and delivers stable power. The kickback control stops the tool if it gets blocked and increases safety. The extendable side handle gives you better control in difficult situations. The LED adjusts to the environment and lights up the work area evenly.

Compact design and flexible use
The belt clip and bit holder help you stay organised. The electronic torque settings support reliable screw tasks. The cordless drill driver can handle long screws even without pre-drilling. With the AMPShare interface, you can keep working with compatible batteries.

Features:


High torque delivers strong results even with large diameters
4-speed full-metal gearbox for work in metal and wood
QuickIN interface saves time when changing accessories
Kickback control stops the machine in case of blockage
Dimmable LED brings clear light to the work area
Side handle ensures controlled power transfer
Electronic torque selection supports precise screw results
Belt clip and bit holder keep accessories ready
Weight without battery: 1.30 kg


Technical Data:


Battery voltage: 18 V
Battery compatibility: Li-Ion / ProCORE Li-Ion
Interface: 18 V AMPShare
Motor: brushless
Gearbox: 4-speed
No-load speed: 430 / 850 / 2000 / 4000 min?1
Max. torque hard/soft: 130 (70 / 50) Nm
Torque settings: 15 + 1
Chuck capacity: 1.5 – 13 mm
Drilling O steel twist drill: 13 mm
Drilling O steel core drill: 30 mm
Drilling O steel hole saws: 80 mm
Drilling O wood: 60 mm
Tapping: M 14
Screws: 10 x 400 mm
Sound power level LWA: 83.9 dB
Sound pressure level LpA: 75.9 dB
Vibration value ah,D: 0.9 m/s2
Weight without battery: 1.30 kg


Scope of delivery:


ASCM 18-4 QM AS cordless drill driver
QuickIN drill chuck (120 Nm)
Belt clip
Bit holder
Telescopic handle


Note: Without charger and without battery
