Fein F-IRON JIG 26 AS Cordless Jigsaw

Volnoběžné otáčky (min-1): 700
Hloubka řezu ve dřevě (mm): 150
Hloubka řezu v hliníku (mm): 24
Hloubka řezu v oceli (mm): 12
Rukojeť: ano
Funkce pokosu: ano
Funkce náklonu: ne
Laserové navádění: ne
napětí akumulátoru: 18
Typ baterie / aku: Lithium-Ionen
Včetně baterií: ne
Typ: Přímočará pila
Způsob provozu: Aku baterie
Celková délka (mm): 250
Pracovní délka (mm): 26
Barva: oranžová / černá
Šířka (cm): 7,9
Výška (cm): 17,4
Hloubka (cm): 25.0
Hmotnost (kg): 2,1

Fein F-IRON JIG 26 AS cordless jigsaw

Precise control and handling are ensured by a narrow, ergonomic bar handle, which is particularly optimized for precise cuts and curved cuts in the tightest of spaces. With individually adjustable speed and a 4-stage pendulum action, precise work results are achieved without reworking - even with a wide variety of materials.
Flexibility in material processing is maximized by the quick and tool-free saw blade change. The automatic saw blade lock ensures additional safety by making it easier to change sharp-edged saw blades and minimizing the risk of injury. An extraction adapter enables clean and ergonomic working, while the integrated LED work light ensures optimum illumination of the work area. Thanks to the intelligent overhead switch-off function, operation is even more convenient.
The concentrated exhaust air from the fan wheel keeps the cutting edge free of dust at all times, providing a clear view of the work area. Cold cuts enable virtually spark- and burr-free results, which significantly reduces reworking. The electronic user protection protects both the device and the user by integrating an overload cut-out and restart protection.
Various mitre angles - 0°, 15°, 30° and 45° - can be set both left and right, increasing the versatility of the tool. Accessories such as chip breaker protection and glide shoe ensure precise results, even on sensitive surfaces. The standard T-shank saw blade holder and an extensive range of accessories, including special saw blades for metal, wood and plastic, make the device an all-rounder.
The tool is compatible with all 18 V AMPShare ProCORE batteries and chargers, ensuring maximum flexibility. The batteries are also compatible with other 18 V Bosch professional tools. The integrated “Electronic Cell Protection” protects the batteries against overload, overheating and deep discharge.
The system is rounded off by the L-BOXX system, which is designed for mobile working and ensures that the tool is ideally equipped for any task.

Features:


Battery voltage: 18 V
Battery compatibility: Li-Ion / ProCORE Li-Ion
Battery interface: 18 V AMPShare
Stroke rate: 700 - 3 000 1/min
Tool holder: T-shank (single-cam shank)
Wood: 150 mm
Stroke length: 26 mm
Steel up to 400 N/mm2: 12 mm
Non-ferrous metals up to 250 N/mm2: 24 mm
Sound pressure level LpA: approx. 88.4 dB
Sound power level LWA: approx. 96.4 dB
Sound peak value LpCpeak: approx. 106.2 dB
Vibration value 1 ?hv 3-way: approx. 7.4 m/s2
Vibration value 2 ?hv 3-way: approx. 7.1 m/s2
Base plate dimensions: 156 x 73 mm
Weight without battery: 2.10 kg

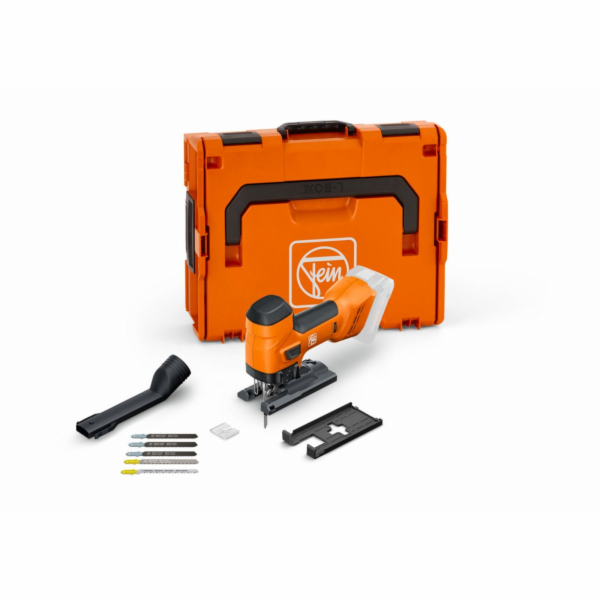

Scope of delivery:


1x Best of jigsaw blades 5-piece (63503188010)
1x Allen key 4 mm
1x plastic glide shoe
1x chip breaker guard
1x dust extraction adapter
1x plastic tool case (L-BOXX 136)
