Fischer DuoXpand 8x80 FUS 50 ks

Průměr vrtaného otvoru (mm): 8
Celková délka (mm): 120
Počet dílů: 50
Min. hloubka vrtu (mm): 50
Rozsah použití: univerzální
Barva: šedá / červená
Materiál: Plast
Typ: Hmoždinky

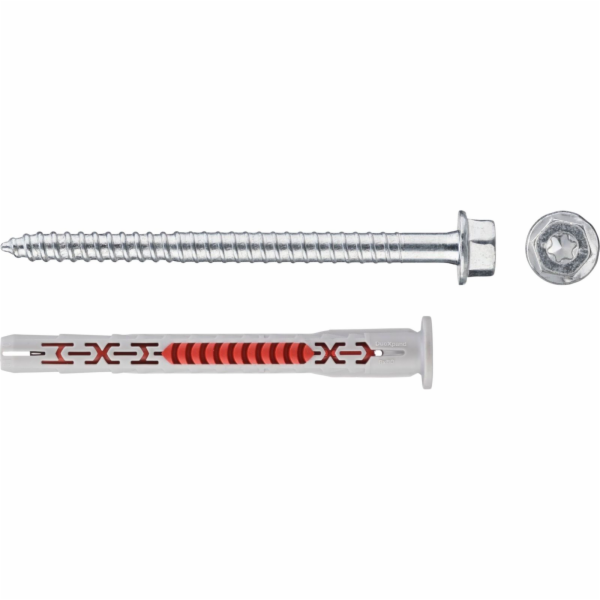

fischer long-shaft plug DuoXpand 8 x 80 FUS hexagon head screw with washer
Thanks to the special lamella geometry, the anchor expands gently in the respective building material. This prevents fractures in porous building materials and enables anchoring close to the edge.
Features:
Drive: TX30/SW10 Quantity: 50 pieces Plug length (l): 80 mm Drill core diameter (d0): 8 mm Effective length for anchorage depth 50 mm (tfix): 30 mm Effective length for anchorage depth 70 mm (tfix): 10 mm

Applications:

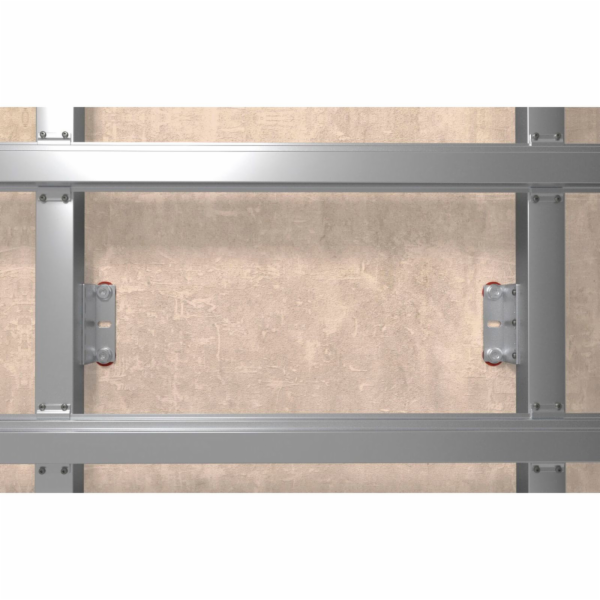

Facade, ceiling and roof substructures made of wood or metal Windows, gates and doors Wardrobes, kitchen wall units and TV consoles Squared timber and beams Wall coverings Metal angles and metal brackets Cable ducts and cable trays

Suitable for the following building materials:
Solid bricks Solid lime sandstone Solid block of lightweight and normal concrete Vertically perforated bricks Perforated sand-lime brick Concrete ? C12/15 Hollow block of light concrete Aerated concrete Natural stone with dense structure Solid Gypsum Plates
