Popis produktu

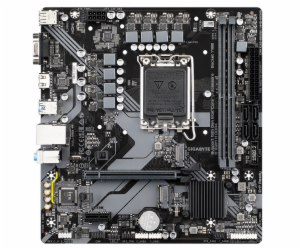

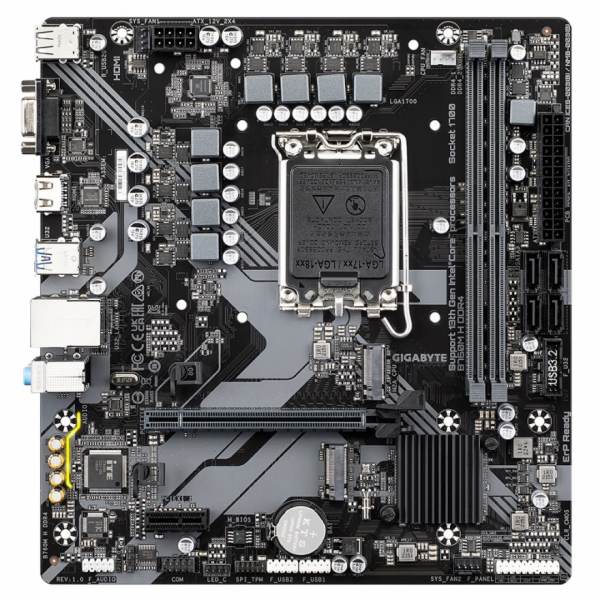

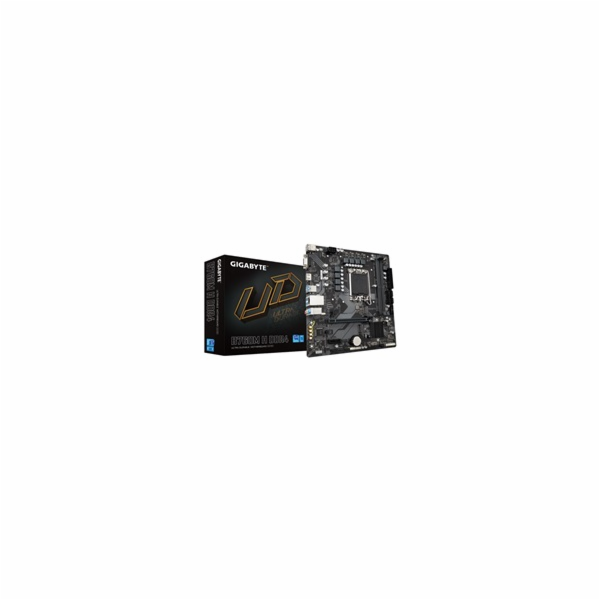

GIGABYTE B760M H DDR4 Supports Intel Core™ 14th/ 13th /12th processors Unparalleled Performance:Hybrid 6+1+1 Phases Digital VRM Solution Dual Channel DDR4:2*DIMMs XMP Memory Module Support Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design Fast Networks:GbE LAN Extended Connectivity:HDMI, D-Sub Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors (Please refer to "CPU Support List" for more information.) Chipset Intel B760 Express Chipset Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 LAN Realtek GbE LAN chip (1 Gbps/100 Mbps) Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out USB Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor 23.0cm x 21.5cm

---
