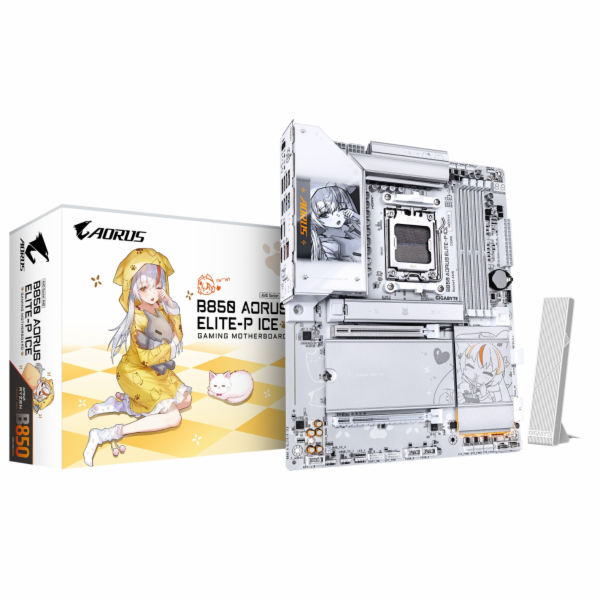

Gigabyte B850 AORUS ELITE-P ICE
Chipset: AMD B850
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:
*AMD Ryzen 9000 Series Processors
*AMD Ryzen 8000 Series Processors
*AMD Ryzen 7000 Series Processors
Patice procesoru: AM5
Paměť:
*Podpora pro DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s
*4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti
*Dual channel memory architecture
*Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
*Podpora pro AMD EXPO a XMP moduly
Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
*1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Zvuková karta:
Realtek® ALC1220 CODEC
*High Definition Audio
*2/4/5.1/7.1-channel
*Support for S/PDIF Out
Ethernet: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE
*802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
*BLUETOOTH 5.4
*Support for 11be 160MHz wireless standard
Rozšiřující sloty:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
*AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
*AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
*AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset
*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
*AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
*AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
*AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
*AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
*AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
*AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
USB:
CPU:
* 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
*2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
CPU+USB 2.0 Hub:
*4 x USB 2.0/1.1 ports on the back panel
Chipset:
*1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
*2 x USB 3.2 Gen 1 ports available through the internal USB header
*4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
*4 x USB 3.2 Gen 1 ports on the back panel
Interní porty:
Napájení
*1× 24-pin ATX main power connector
*2× 8-pin ATX 12V power connectors
*1× CPU fan header
*1× CPU fan / water cooling pump header
*3× system fan headers
*1× system fan / water cooling pump header
Související s úložištěm
*4× M.2 Socket 3 connectors
*2× SATA 6Gb/s connectors
USB
*1× USB Type-C header, USB 3.2 Gen 2x2
*1× USB 3.2 Gen 1 header
*2× USB 2.0/1.1 headers
Ostatní
*3× addressable RGB Gen2 LED strip headers
*1× RGB LED strip header
*1× front panel header
*1× front panel audio header
*1× Trusted Platform Module header
*1× reset jumper
*1× Clear CMOS jumper
Porty na zadním panelu:
*1 x HDMI port (Note)
*1 x reset button
*1 x power button
*1 x Clear CMOS button
*1 x Q-Flash Plus button
*4 x USB 2.0/1.1 ports
*4 x USB 3.2 Gen 1 ports
*2 x USB 3.2 Gen 2 Type-A ports (red)
*2 x USB Type-C® ports, with USB 3.2 Gen 2 support
*1 x RJ-45 port
*2 x antenna connectors (2T2R)
*2 x audio jacks
*1 x optical S/PDIF Out connector
BIOS:
*1 x 512 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
H/W Monitorování:
*Voltage detection
*Temperature detection
*Fan speed detection
*Water cooling flow rate detection
*Fan fail warning
*Fan speed control
OS: Podpora pro Windows 11 64-bit
