Intel® WIFI 6 AX200 module built-in
Up to 2400Mbps connection speed (theoretical)
802.11abgn+acR2+ax(Pre-Standard) MIMO 2Tx2R
BLUETOOTH 5.0
MU-MIMO TX/RX
Paired with AORUS high performance 2Tx2R antenna
PCIe x1 interface card
Smashes the GbE Barrier!

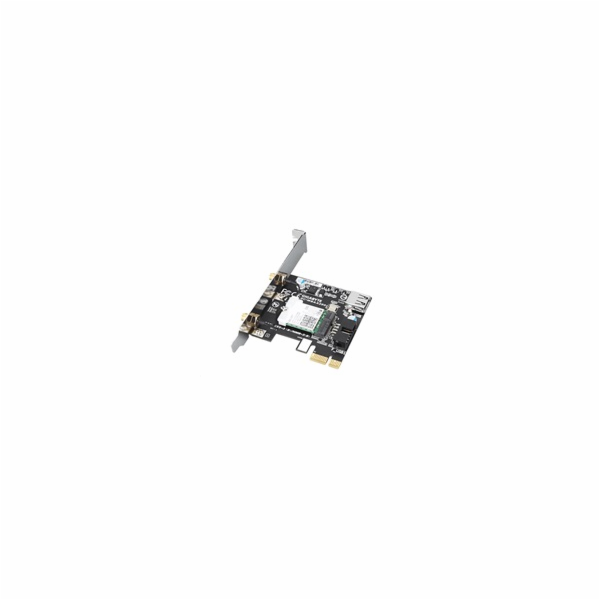

2x2 802.11ax Dual Band WIFI + BLUETOOTH 5 card GC-WBAX200 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Dual Band WIFI and BLUETOOTH 5 connectivity.
AORUS Antenna Supports Dual Band with Better WIFI Signal
All new antenna supported dual band 802.11ax 2.4GHz & 5GHz.
Better signal strength compared to traditional antenna design
AORUS Antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and location
BLUETOOTH FUNCTION
Standard Bluetooth 5
WIFI FUNCTION
Wireless a/b/g/n/ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, WIFI Direct*, WIFI Miracast*
IEEE WLAN Standard IEEE 802.11-2016 and select amendments (selected feature coverage)
IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016
Security Security Methods- WPA* and WPA2*, 802.1X (EAP-TLS, TTLS, PEAP,EAP-SIM, EAP-AKA, EAP-AKA)
Authentication Protocols- 802.1X EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
Technické parametry
Typ Wi-fi aktivního prvku: Adaptéry PCI-Express
Komunikační pásmo: 2,4 GHz
Komunikační pásmo: 5 GHz
Připojení externí antény: Ano
