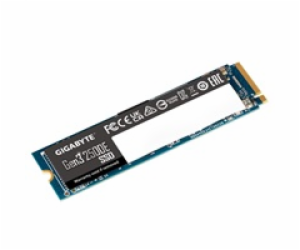

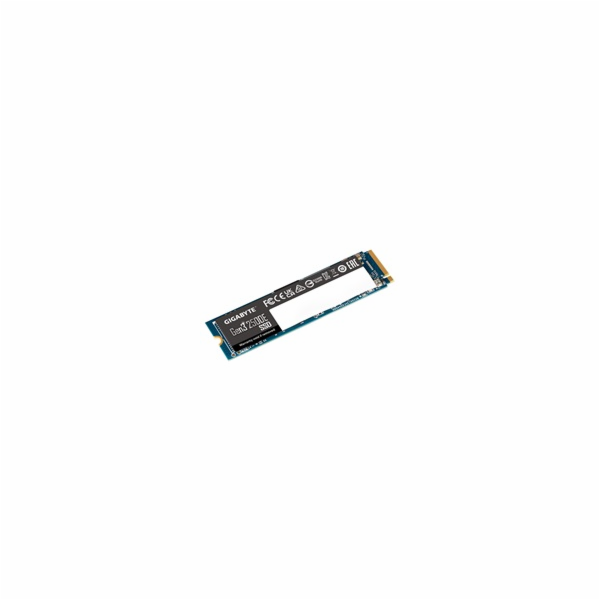

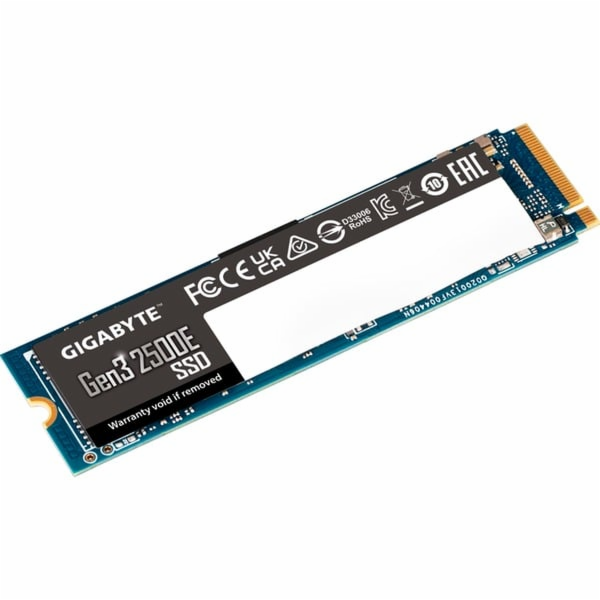

GIGABYTE SSD 500GB 2500E Gen3

GIGABYTE Gen3 2500E SSD 500GB

Form Factor: M.2 2280
Interface: PCI-Express 3.0 x4, NVMe 1.3
Total Capacity: 500GB
Sequential Read Speed : up to 2300 MB/s
Sequential Write speed : up to 1500 MB/s
HMB (Host Memory Buffer) supported
TRIM & S.M.A.R.T support
Energy-Efficient

Interface
PCIe 3.0x4, NVMe1.3 interface
Form Factor
M.2 2280
Total Capacity
500GB
External DDR Cache
N/A
Sequential Read speed
Up to 2300 MB/s
Sequential Write speed
Up to 1500 MB/s
Random Read IOPS
Up to 60K
Random Write IOPS
Up to 240K
Dimension
22 x 2.3 x 80 mm
Mean time between failure (MTBF)
1.5 million hours
Power Consumption (Active)
Average R : 2670mW Average W : 3200mW
Power Consumption (Idle)
Idle : 30mW L1.2 < 5mW
Temperature (Operating)
0°C to 70°C
Temperature (Storage)
-40°C to 85°C
Warranty
Warranty 1. Limited 3 years or 120TBW. 2. Limited warranty based on 3 years or 120TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary.
