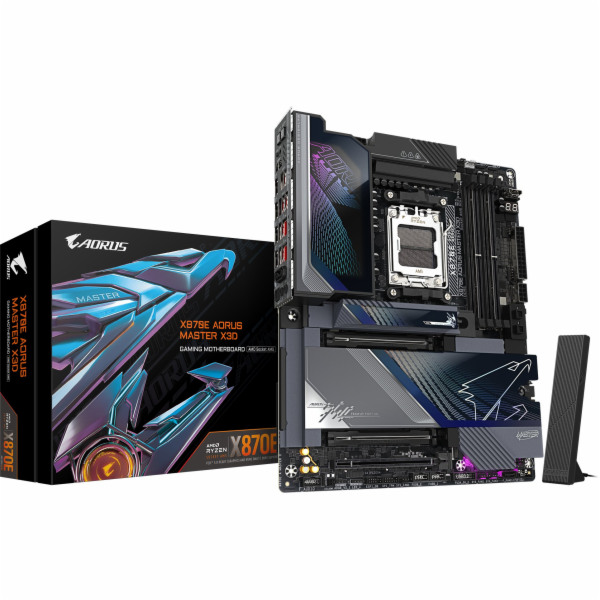

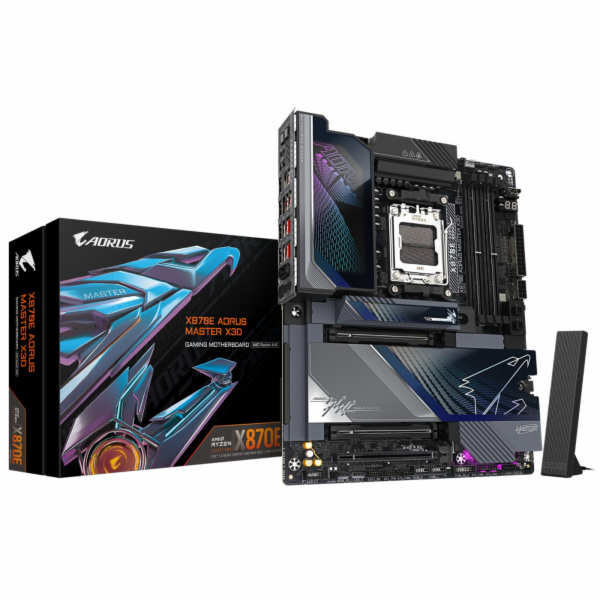

Gigabyte X870E AORUS MASTER X3D
Chipset: AMD X870E
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:
*AMD Ryzen 9000 Series Processors
*AMD Ryzen 8000 Series Processors
*AMD Ryzen 7000 Series Processors
Patice procesoru: AM5
Paměť:
*Podpora pro DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
*4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti
*Dual channel memory architecture
*Podpora pro non-ECC Un-buffered DIMM moduly
*Podpora pro AMD EXPO a XMP
Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
*2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Integrated Graphics Processor with AMD Radeon™ Graphics support:
*1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
*1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Zvuková karta:
*Realtek® ALC1220 CODEC
*ESS ES9118 DAC chip
*Support for DTS:X® Ultra
*High Definition Audio
*2/4/5.1-channel
Ethernet:
*Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
*Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738
*802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
*BLUETOOTH 5.4
*Support for 11be 320MHz wireless standard
Rozšiřující sloty:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
*AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
*AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
*AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
* AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
Chipset:
*1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10
Úložný prostor:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
*AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
*AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
*AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
*AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
*2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
*1 x M.2 connector (M2E_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
*2 x SATA 6Gb/s connectors
USB:
CPU+ASMedia USB4® controller:
*2 x USB4® USB Type-C® ports on the back panel
CPU:
* 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
*4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
*1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
*1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
*1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
*6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
*4 x USB 2.0/1.1 ports available through the internal USB headers
Interní porty:
Napájení
*1× 24-pin ATX main power connector
*2× 8-pin ATX 12V power connectors
*1× PCIe power connector
*1× CPU fan header
*1× CPU fan / water cooling pump header
*4× system fan headers
*1× system fan extension cable header
*1× system fan / water cooling pump header
Související s úložištěm
*5× M.2 Socket 3 connectors
*2× SATA 6Gb/s connectors
USB
*1× USB Type-C header, USB 3.2 Gen 2x2
*2× USB 3.2 Gen 1 headers
*2× USB 2.0/1.1 headers
Ostatní
*4× addressable RGB Gen2 LED strip headers
*1× RGB LED strip header
*1× front panel header
*1× front panel audio header
*1× speaker header
*1× noise detection header
*1× Trusted Platform Module header
*1× HDMI port
*1× chassis intrusion header
*1× reset jumper
*1× Clear CMOS jumper
*2× temperature sensor headers
Porty na zadním panelu:
*1 x Q-Flash Plus button
*1 x Clear CMOS button
*1 x reset button
*1 x power button
*1 x HDMI port (Note)
*2 x USB4® USB Type-C® ports (DisplayPorts (Note))
*1 x USB Type-C® port, with USB 3.2 Gen 2 support
*1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
*7 x USB 3.2 Gen 2 Type-A ports (red)
*2 x RJ-45 ports
*2 x antenna connectors (2T2R)
*2 x audio jacks
*1 x optical S/PDIF Out connector
BIOS:
*1 x 512 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
H/W Monitorování:
*Voltage detection
*Temperature detection
*Fan speed detection
*Water cooling flow rate detection
*Fan fail warning
*Fan speed control
OS: Podpora pro Windows 11 64-bit
