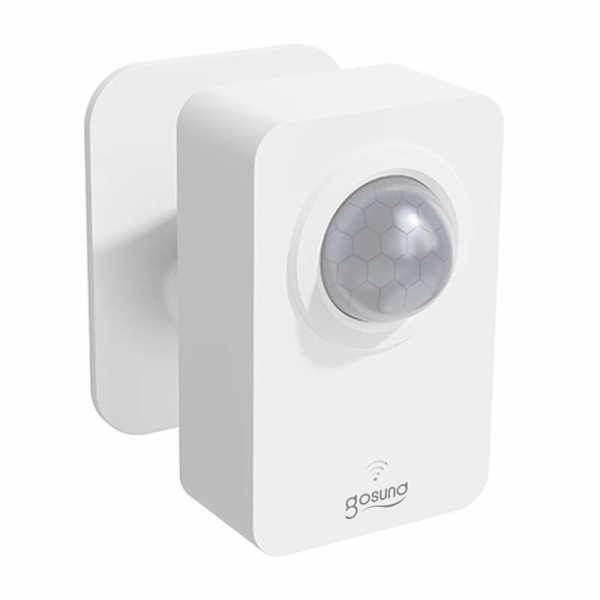

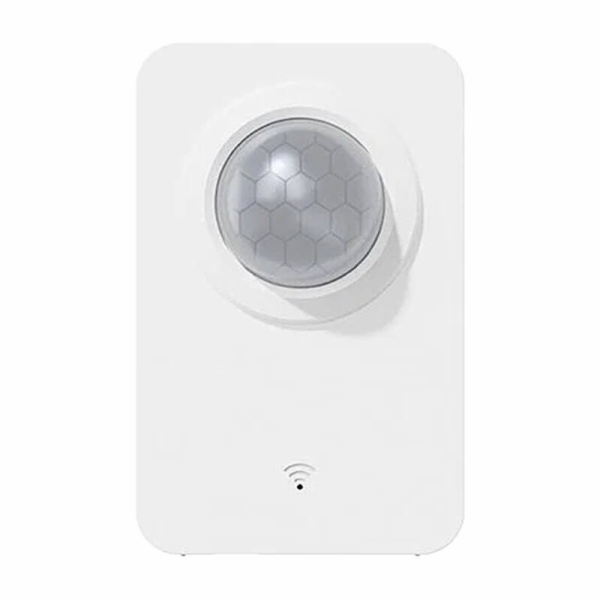

Gosund ST20 Tuya smart ZigBee motion sensor

Gosund ST20 Zigbee smart Wi-Fi motion sensor
The Gosund ST20 is an advanced Zigbee motion sensor that allows you to remotely monitor and control the security of your home. Thanks to its integration with the Gosund mobile app, you can monitor your home in real time even while you are away, giving you confidence and peace of mind. The product requires a ZigBee gateway (not included) for proper operation.
Wide-angle motion detection
The ST20 motion sensor is equipped with advanced infrared detection technology with a viewing angle of 128°. This enables effective detection of motion both horizontally and vertically at a distance of up to 10 meters. Such a solution provides comprehensive coverage of the monitored area, minimizing blind spots.
Remote control via the app
With the Gosund mobile app, you can remotely monitor the status of the motion sensor, receive notifications when motion is detected, and configure settings. The app also allows you to integrate with other smart devices such as smart light bulbs, alarms, cameras or curtains to create home automation scenarios.
Instant alarm notifications
The Gosund ST20 sends instant alert notifications to your mobile device when it detects motion. This ensures that you are always up to date with what is happening in your home. In addition, the sensor is equipped with a high decibel audible alarm to scare off intruders and instantly inform residents of a potential threat.
Easy installation and versatility
The Gosund ST20 motion sensor is easy to install and can be placed anywhere in the house. Its compact size (70x45x35.6 mm) and lightweight design (100 g) allow the device to be placed discreetly. Powering it with two LR6-1.5V/AA batteries ensures long operating time, and if needed, you can also connect power via a micro USB port (DC 5V/1A).

Manufacturer
Gosund
Model
ST20
Material
ABS
Dimensions
70x45x35.6 mm
Weight
100 g (without batteries)
LED indicator
Red
Batteries
LR6-1.5V/AA x 2 (alkaline batteries)
Micro USB power supply
DC 5V/1A
Current in standby mode
? 81uA
Alarm current
? 3mA
Detection angle
128°
Detection range
? 8 meters
Zigbee frequency
2.4GHz IEEE 802.15.4
Operating temperature range
0°C ~ 50°C
Operating humidity range
10% ~ 85% RH
Storage temperature range
0°C ~ 70°C
Storage humidity range
5% ~ 95% RH
Certifications
CE/RED, RoHS
