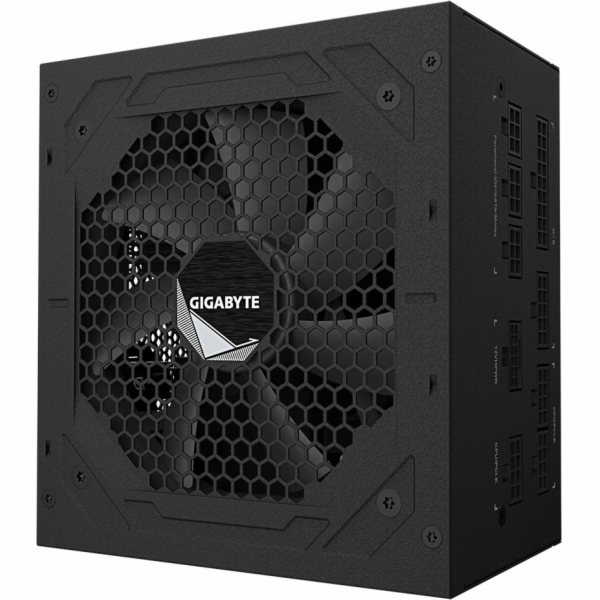

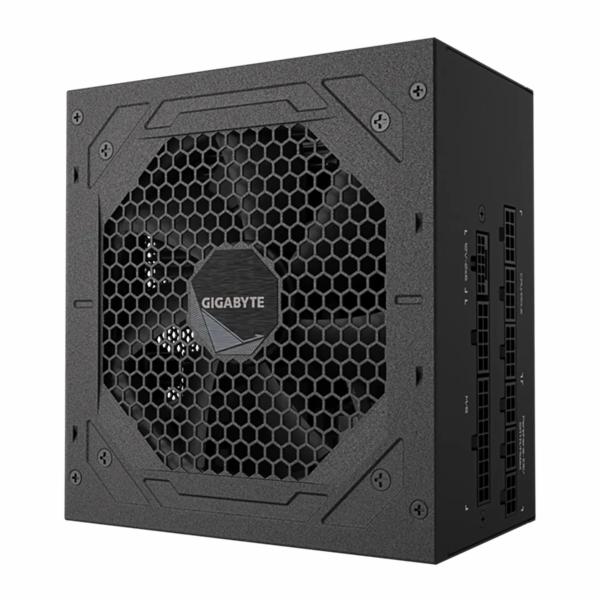

GIGABYTE zdroj UD1000GM PG5 Rev.2.0, 1000W, 80+ Gold, 120mm fan

UD1000GM PG5 (rev. 2.0)

Ultra Durable

Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection


Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
10 years warranty (Adjusted according to different regions)

Model
GP-UD1000GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1000W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
