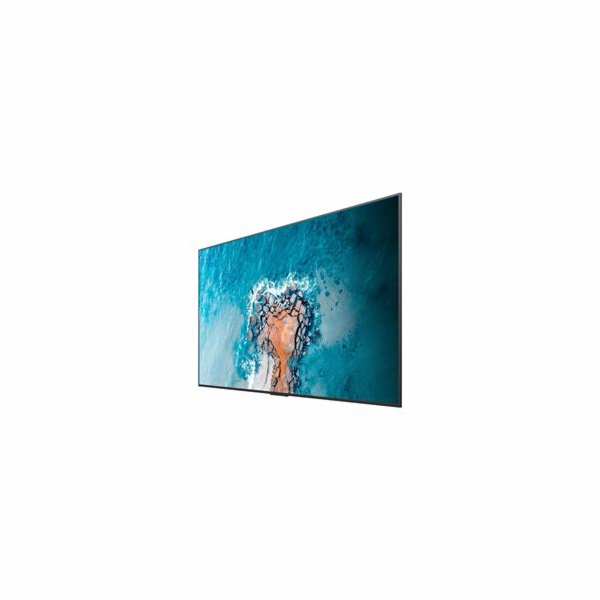

Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by connecting a series of displays to a single video output.
Digital Display Panel
Backlight Type: DLED
Type: VA
Size: 100"
Resolution: 3840 x 2160
Refresh rate: 60Hz
Color Depth: 1.07B (10bit)
Brightness(Typ.): 500 nits
Contrast Ratio(Typ.): 5000:1
Response Time(Typ.): 8ms
Viewing Angle(Min.): 178° / 178°
Color Gamut(Typ.): 90% DCI-P3
Haze: 25%
Orientation: Landscape & Portrait
Lifetime: up to 50,000 hrs
Operation Hours: 7Day x 24Hour
System
Operating System: Android 11
Processor CPU: ARM Cortex-A55 Quad core
Processor GPU: Mali-G52
Memory: 3G DDR4
Storage: 32G EMMC
Language: Simplified Chinese, English, French, German, Polish, Spanish, Russian, Italian, Finnish, Norwegian, Swedish, Hebrew, Arabic, Thai, Malay, Indonesian
Connectivity
Wi-Fi: 2.4/5.0GHz dual, 802.11a/b/g/n/ac
Bluetooth: BT5.1
Input:
- HDMI(2.0) x2
- DP(1.2a) x1
- USB2.0(A) x1
- USB3.0(A) x1
- RS232(RJ45) x1
- LAN(RJ45) x1
Output:
- HDMI x1
- Audio(3.5mm) x1
Physical
Bezel Color: Black
Set Dimension (W x H x D): 2234.6 x 1285.6 x 86.5mm / 88 x 50.6 x 3.4 inch
Bezel Width (T/L/R/B): 13.2mm(T/L/R), 19mm(B)
Net Weight: 58.7kg / 129.41lbs
Packing Dimension (W x H x D): 2402 x 1514 x 297mm / 94.57 x 59.61 x 11.69 inch
Gross Weight: 76.2kg / 168lbs
VESA Mount: 600 x 600mm (Landscape / 600 x 1000mm (Portrait), 4-M8 Screw
Power
Power Supply: AC 100~240V (50/60Hz)
Power Consumption (Typ.): 240W
Power Consumption (Max.): 450W
Standby Consumption: <0.5W (Standby Mode)
Speaker
Built in Speaker: 15W x2
Environment
Operating Temperature: 0°~40°C
Operating Humidity: 10%~80% Non-Condensing
What s in the Box
Standard:
- Quick Setup Guide
- Warranty Card
- Power Cord
- Remote Controller
- Battery (AAA) x2
- RS232 Converter Cable
Certification
Standard Certification: CB / CE / ERP / South Africa Energy Efficiency / cTUVus / CEC / FCC
Safety: 62368-1
Environment: Energy Star 8.0
EMC: Class A
