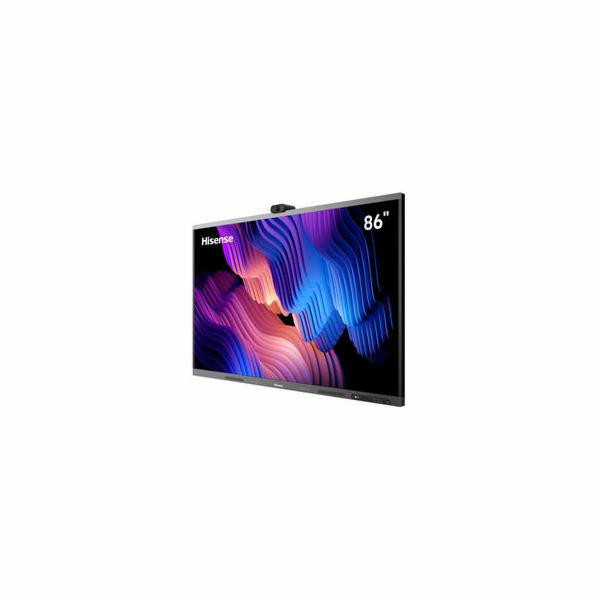

Hisense Interactive Display solutions deliver exceptional performance and market leading value. Integrating the power of an interactive display, smart whiteboard, powerful microphone array and stereo speaker, Hisense delivers the ultimate all-in-one display solution. Smart OS and ecological abundance, provides best-in-class user experiences while seamless wireless integration makes collaboration both simple and engaging. The NEW GoBoard Live Pro display features Google Play Store, Android 13.0 operating system and optimized smart white board to empower your business.
Interactive Display panel
LCD Size: 86"
Backlight Type: D-LED
Resolution: 3840 x 2160 (Pixels)
Brightness: 400nits(typ.)
Contrast Ratio: 1200:1(typ.)
Response Time: 8ms(typ.)
Refreshing Frequency: 60Hz
Viewing Angle: 178°(H) / 178°(V)
Lifetime: 50,000 hrs (min.)
Colour Gamut (X% NTSC): 72%
Display Colours: 1.07B(10bit)
System
CPU: Architecture - A73x4 + A53x4 Octa-core // Working Frequency - 2.2GHz + 2.0GHz
GPU: MaliG52
RAM: 8GB
ROM: 128GB
Operating System: Android 13.0
Language: English (default), Chinese, French, Spanish, German, Italian, Polish, Finnish, Norwegian, Swedish, Thai, Indonesian, Japanese, Russian, Arabic, Vietnamese, Serbian, Kazakh; Croatian, Slovenian, Czech, Slovak, Hungarian, Romanian, Bulgarian, Albanian, Macedonian, Greek, Turkish, Afrikaans, Malay
Power
Power Requirements: AC 100V ~ 240V, 50/60Hz
Power Consumption Without OPS: 430W (Max) / 321.3W (Typ.)
Standby Consumption: <0.5W
Built in Speaker: 2x18W+25W
Connectivity
OPS Power: DC 18V/5A
Wi-Fi: IEEE 802.11a/b/g/n/ac/ax(2.4G and 5G) // IEEE 802.11a/b/g/n/ac(2.4G and 5G)
Bluetooth: BT5.3
NFC: Yes
Camera: Yes
Input:
- HDMI (2.0) IN x3
- OPS (Optional) x1
- LAN x1 (1000baseT R)
- USB2.0 x1
- USB3.0 x3
- Type-C x1 (Support PD 65W)
- Touch x1
- Audio In x1
- RS-232 In x1 (RJ45)
Output:
- RS232 OUT x1 (RJ45)
- HDMI Out x1
- COAX Out x1
- Audio Out x1
Touch
Sensing Type: Infrared Touch Frame
Surface Protection: Anti-Glare Glass
Infrared Touch:
<55 points (OPS)
<55 points (Android)
<40 points (MAC)
Touch Accuracy: 90%(+1mm)
Theory Clicks: Unlimited
Minimum Touch Object: 2mm
Writing Height: <1.5mm (Support Quatro Sense)
Windows 11/10/8/7, Android: Multi Touch
Physical
Product Size (W x H x D): 1954.7 x 1197.6 x 125.9mm // 77 x 47 x 5.0 inch
Package Size (W x H x D): 2095 x 1303 x 240mm / 82.5 x 51.3 x 9.4 inch
Net Weight: 59.0kg / 130.1lbs
Packed Weight: 76.5kg / 168,6lbs
Housing Material: Front Shell: Aluminium // Rear Shell: Plastic
Housing Colour: Black + Tarnish
VESA: 1000 x 600mm, 4-M8 Screw
Environment
Operation Temperature: 0 - 40°C
Operation Humidity: 20% - 80%
Certification
Standard Certification: CB/CE/ERP/SouthAfrica Energy Efficiency/cTUVus/CEC/UKCA/FCC/IC/RCM/Energy Star/EDLA
Accessories
Basic:
- User Manual ×1
- Pen ×2
- Remote Control ×1
- Power Cable ×1 (Country Dependent)
- Battery ×2
- Wall Mount Bracket ×1
Optional:
- Mobile Cart
- Wireless Casting Dongle
- OPS
