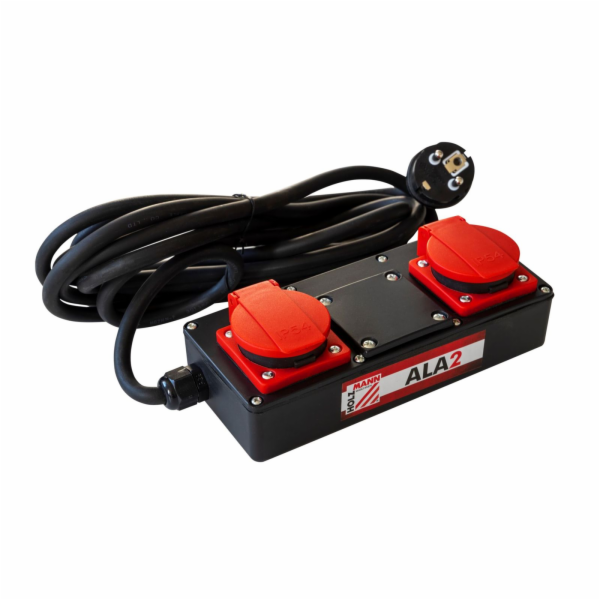

Holzmann ALA2 230V Compact Distribution Box

Typ: Spouštěcí automatika sacích zařízení
Zdroj napájení: Síť
Hmotnost (kg): 0,93
Výška (cm): 6,5
Hloubka (cm): 8,0
Šířka (cm): 19,5
Barva: černá / červená

Holzmann ALA2 230V automatic start-up for extraction unit
With the HOLZMANN automatic start-up system for extraction units, your extraction unit can be switched on and off automatically once the woodworking machine has been activated (both on a 230 V basis). Connect the woodworking machine and the extraction unit to the automatic start-up and you are ready to go. (The prerequisites for the extraction system should be checked beforehand to ensure smooth operation).
Features:
A processing machine can be connected to the automatic start-up system After switching on the working machine (master), the second connected machine, e.g. extraction unit (slave), is enabled after 2-4 seconds After switching off the working machine, the second machine is also switched off after 3-4 seconds Automatic start-up for 2 230V machines Max. Rated power 3680 W (16A) Connection cable H07RN-F 3G1.5mm2 with 4 m length Master-slave socket with switch-on / switch-off delay of 2 - 4 seconds

Technical data
Voltage: 230 V / 50 Hz Cable length: 4 m Protection class: IP44 Installation dimensions: 195 x 80 x 65 mm Extraction system slave Switching delay: 2 - 4 s Mains input: 230 V Weight: approx. 0.93 kg
