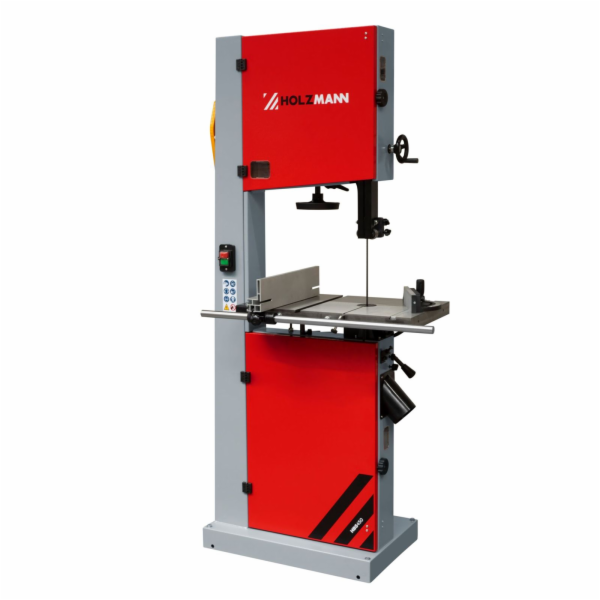

Holzmann HBS450 400V Wood Bandsaw

Výkon (Watt): 1500
Napětí (V): 400
Typ: Pásová pila
Způsob provozu: Síť
Barva: červená / černá
Šířka (cm): 95,8
Výška (cm): 191,0
Hloubka (cm): 66,4
Hmotnost (kg): 161

Holzmann HBS450 400V wood band saw

The HOLZMANN HBS450 wood band saw for cutting heights up to 330 mm, 2 saw blade speeds ideal for your wood workshop.

Features:


Cast iron wheels O 450 mm
Sturdy parallel fence in aluminium design
Cutting height adjustment can be set quickly and easily via handwheel/rack and pinion combination
Saw blade width from 6 mm to 33 mm possible
Machine height: 191 cm
2 saw blade speeds (400 or 900 m/min)
Inclined table adjustment from -5° to +45° via toothed guide
2 extraction connections (O 100 mm)
Note: Voltage: 400V (a 400V connection is required)


Technical data


Power: 1500 watts
Voltage: 400 V / 3 / 50 Hz
Dimensions
Projection: max. 447 mm
Table size: 546 x 400 mm
Table height: 960 mm
Suction connection: 2x 100 mm diameter
Installation dimensions: 958 x 664 x 1910 mm
Cutting width at rip fence: 393 mm
Saw blade: 3866 mm
Saw blade width: 6 - 33 mm
Running wheel diameter: 450 mm
Saw blade speed:
Stage 1: 400 m/min
Stage 2: 900 m/min
Weight: approx. 161 kg


Please note:

Electrical connection work / installations may only be carried out by qualified specialist personnel.
