Holzmann KAP305ECO 230V Chop and Mitre Saw

Volnoběžné otáčky (min-1): 3800
Pilový kotouč - průměr (mm): 305
Pilový kotouč - průměr vrtání (mm): 25,4
Rukojeť: ano
Funkce tahu: ano
Funkce pokosu: ano
Funkce náklonu: ano
Výkon (Watt): 2000
Napětí (V): 230
Typ: Kapovací a pokosová pila
Způsob provozu: Síť
Celková délka (mm): 890
Barva: červená / šedá
Materiál: kov / plast
Šířka (cm): 89,0
Výška (cm): 60,0
Hloubka (cm): 49,0
Hmotnost (kg): 21,0

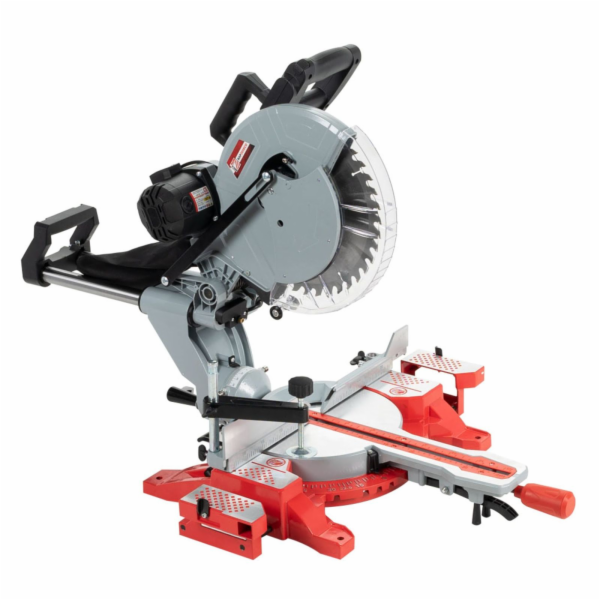

Holzmann KAP305ECO 230V cross-cut and mitre saw

The HOLZMANN KAP305ECO_230V is a solid and reliable cross-cut and mitre saw that can cope with the most diverse requirements in your workshop. Easy handling thanks to the built-in laser that indicates the cutting line, the sophisticated design of the saw unit that allows a cutting height of 105 mm, plus easy transportability - this machine impresses on all fronts.

Features:


Extremely quiet and gentle on the mechanics thanks to belt drive
Saw unit can be swivelled left/right (-45°/+45°) and rotated (-45°/+45°)
Extendable backgauge
Depth stop included in the scope of delivery
Particularly smooth-running and precision-mounted double guide pulley system
Very solid die-cast aluminium base frame ensures optimum stability


Technical data:


Motor power: 2000 W
Voltage: 230 V
Speed: 3800
Protection class: II
IP20
Cable length: 2 m
Suction connection O: 37.5 mm
Installation dimensions: 890 x 600 x 490 (max. 1140 x 1020 x 690)
Max. Cutting height 90°: 105 mm
Max. Max. cutting height 45°: 60 mm
Max. Cutting length 90°: 330 mm
Max. Cutting length 45°: 230 mm
Saw blade O: 305 mm
Bore O: 25.4 mm
Sound pressure level: 95 dB(A)
Colour: red / grey
Weight: 21 kg


Scope of delivery:


Holzmann KAP305ECO 230V cross-cut and mitre saw
Carbide circular saw blade
laser
Table extension
