Holzmann TS315F1600 400V Panel Saw

Výkon (Watt): 3920
Napětí (V): 400
Typ: Stolní kotoučová pila
Způsob provozu: Síť
Celková délka (mm): 3000
Barva: červená / šedá
Šířka (cm): 300
Výška (cm): 320
Hloubka (cm): 120
Hmotnost (kg): 146,5

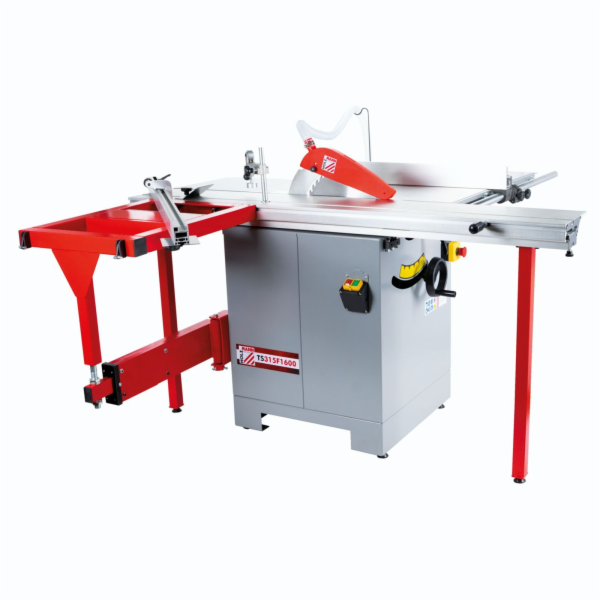

Holzmann TS315F1600 400V sliding table saw

Features:


Swivelling and height-adjustable circular saw blade
1600 mm long sliding table with support roller on the boom
Saw blade with 315 mm allows a cutting height of up to 85 mm
Stable and precisely guided parallel fence
Strong grey cast iron table for long service life
Table extension and table extension


Technical data:


Voltage: 400V (400V connection required)
Power S1: 2800 Watt
Power S6: 3920 watts
Table size: 800 x 365 mm
Table height: 850 mm
Table extension: 350 x 365 mm
Table width: 800 x 540 mm
Sliding table: 238 x 1600 mm
Extraction connection: 100 mm
Installation dimensions: 3000 x 3200 x 1200 mm
Maximum cutting height 90°: 85 mm
Maximum cutting height 45°: 60 mm
Maximum trimming length: 1400 mm
Cutting width at the parallel fence: 900 mm
Saw blade diameter: 315 mm
Bore: 30 mm
Saw blade speed: 4000 U/min
Sound power level: 103 dB(A)
Sound pressure level: 89.5 dB(A)
Weight: 146.50 kg


Scope of delivery:


Carbide circular saw blade 315mm
Outrigger
Table extension
Table extension parallel stop
Telescopic boom stop
Trimming shoe
Niederhalter
Sliding stick and sliding wood


Please note:
Electrical connection work / installations may only be carried out by qualified specialists.
