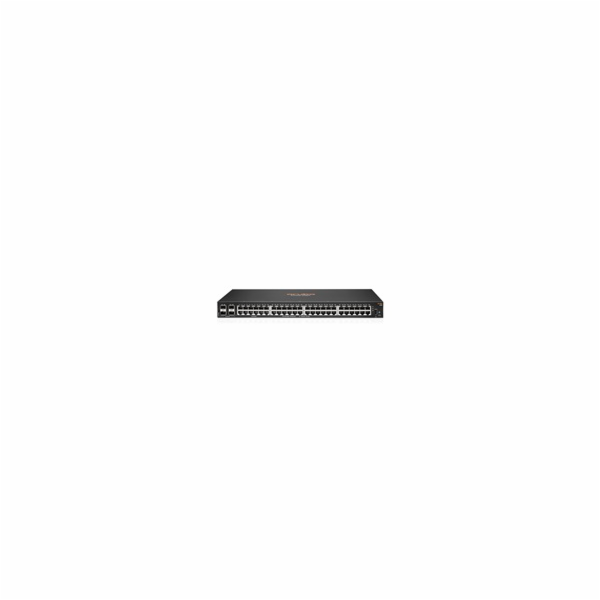

HPE Aruba Networking CX 6100 48G 4SFP+ Switch RENEW JL676AR#ABB

HPE Aruba Networking CX 6100 48G 4SFP+ Switch - Technical Specifications
Technical Specifications: HPE Aruba Networking CX 6100 48G 4SFP+ Switch



Product Number
JL676A


Differentiator
48x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports 1x USB-C Console Port 1x USB Type-A Host port Fixed power supply Fixed fans


Ports
48x ports 10/100/1000BASE-T ports 4x 1G/10G SFP ports


Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz 4 GB DDR3 (maximum, depending on model) 16 GB eMMC


Latency
1 Gbps: 1.9 µSec 10 Gbps: 1.8 µSec


Throughput
98.6 Mpps


Switching Capacity
176 Gbps


PoE Capability
370W, maximum, depending on model


Input Voltage
100–127 VAC / 200–240 VAC


Power Consumption
Max Power: 44.2W


Product Dimensions (Metric)
4.4 x 44.2 x 24.7 cm


Weight
3.4 kg





HPE Aruba Networking CX 6100 Switch Comparison
HPE Aruba CX 6100 Switches Specification Comparison



Feature
JL676A (48G Non-PoE)




Description
48x 1G Ports, 4x 1G/10G SFP+, USB-C Console, USB-A Host


PoE Power
Not Supported


Power Supply
Fixed 65W


Fans
Fixed


Dimensions (HxWxD)
4.39 x 44.2 x 24.74 cm


Weight
3.42 kg


CPU
Dual Core ARM Cortex A9 @ 1016 MHz


Memory / Flash
4 GB DDR3 / 16 GB eMMC


Packet Buffer
12.38 MB (4.5MB Ingress / 7.875MB Egress)


Switching Capacity
176 Gbps


Throughput
98.6 Mpps


Latency (64-byte)
1G: 1.9 µs, 10G: 1.8 µs


IPv4/IPv6 Hosts
IPv4: 1024, IPv6: 512


Unicast Routes (IPv4 / IPv6)
512 / 512


MAC Table
8,192 Entries


ACL Entries (IPv4 / IPv6 / MAC)
256 / 128 / 256


Operating Temp
0°C to 45°C (Derated above 1.5 km)


Power Consumption (230V)
Idle: 20.6W Max: 44.2W


Acoustic
3.6 Bel / 24.6 dB


Mounting
Rack, Wall, or Flat Surface Mount (kit included)


Certifications & Compliance
IEC/EN/UL/CSA 62368-1, FCC, VCCI, CISPR, EN 55032, etc.
