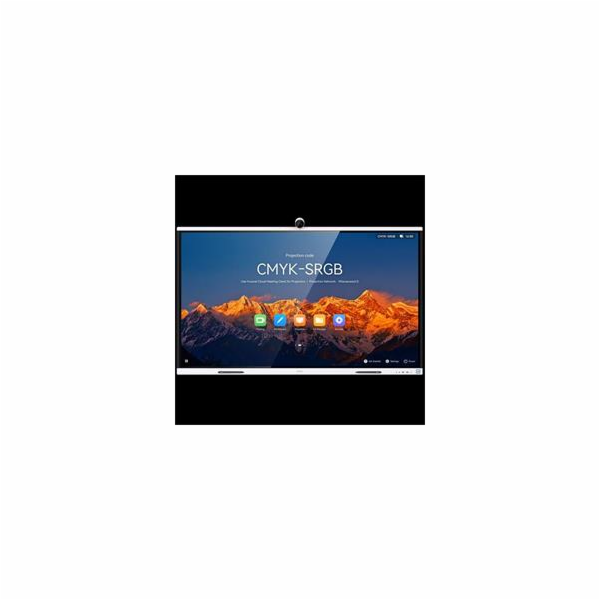

Product Name HUAWEI IdeaHub S2
Product model 86": IHS2-86SA
Product dimensions(H x W x D) 86": 1212.0 mm x 1953.0 mm x 91.8 mm
Net weight 86": 62.0 kg
Gross weight (including the package) 86": 73.5 kg
* The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (57 mm).
Device 1
Stylus pens 2
Cable Power cable x 1
Wall-mounted bracket Optional (65", 75", and 86")
Rolling stand Optional (65", 75", and 86")
IdeaShare Key Optional (Type-A/Type-C port)
OPS Optional
Resolution 4K (3840 x 2160 pixels)
Backlight type D-LED
Screen Lamination Zero-gap bonding
Latency 16 ms
Touch sensing distance ? 1.5 mm
Intelligent writing recognition Supports recognition of Chinese, English, French, Japanese, Spanish, Russian, Portuguese, Italian and 11 types of graphics
Resolution 4K
Camera sharpness 1800 lines
Lens cap for privacy protection ?
Horizontal FoV 80°
TV distortion
Speaker frequency domain 100 Hz to 20 kHz
Number of speaker units 4
Speaker total power 40 W
Sound pickup angle 180°
Sound pickup distance 12 m
Microphone frequency domain 80 Hz to 20 kHz
Optimized sound pickup Sound location, echo cancellation, and automatic gain control
Native meeting apps Huawei Cloud Meeting and WeLink
Dual streams (audio/video + data sharing) 1080p30fps+1080p30fps/4K8fps
BYOM ?
Auto-Framing ?
Intelligent tracking ?
Acoustic baffle ?
DNN-based dereverberation ?
CPU 8-core
RAM 8 GB
Flash 64 GB
OS HarmonyOS, Windows (OPS required)
Security Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
Language Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, German, Portuguese, and Italian
Wi-Fi module Wi-Fi 6
Wi-Fi frequency 2.4 GHz + 5 GHz
NFC ?
Video input HDMI cable x 1
Video output HDMI cable x 1
Audio input ·3.5 mm (line-in) x 1 ·HD-AI x 1
Audio output 3.5 mm (line-out) x 1
Other ports ·USB Type-A 3.0 x 3 ·USB Type-C x 1 ·RJ45 (10/100/1000 Mbit/s LAN) x 1
