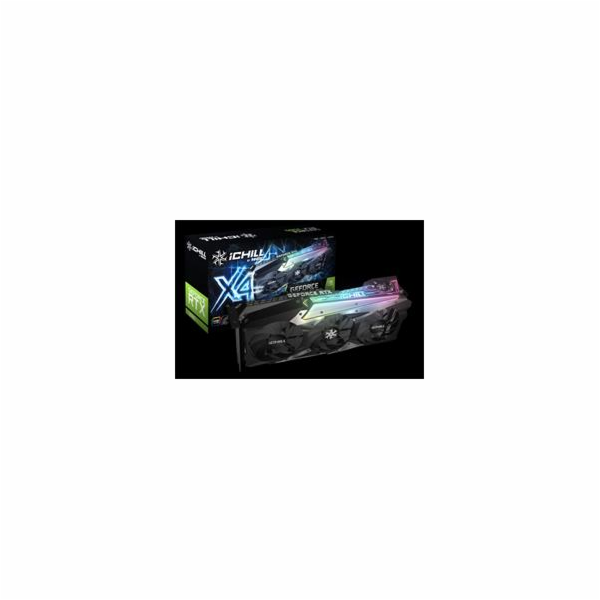

INNO3D Video Card NVIDIA GeForce RTX 3080 iChill X4 LHR, 10GB 320bit GDDR6X 1770Mhz / 19G, PCI-E 4 3x DP, HDMI, 3 fan, 3

Video Output


Requires Expansion Slot Standard:
PCI Express 4.0 x16


Video Chipset:
Nvidia GeForce RTX 3080


GPU Core Speed Boost:
1770 MHz


GPU Quantity:
1


Stream Processors Quantity:
8704


Texture Mapping Unit Quantity:
272


Render Output Units Quantity (ROP):
96


Tensor Core Quantity:
272


Ray-tracing Cores Quantity:
68


Maximum Resolution:
7680x4320


2D/3D Features:
HDCP(High-Bandwidth Digital Content Protection)
Nvidia CUDA
Nvidia GPU Boost
Nvidia G-Sync
Nvidia ShadowPlay
VR Ready
Nvidia Ansel
Nvidia DLSS
Nvidia Highlights
NVIDIA Ampere Architecture
2nd Gen Ray Tracing Cores
3rd Gen Tensor Cores


API Supports:
DirectX 12.0
OpenGL 4.6


Memory


Video Memory Type:
Video Controller Memory


Memory Type:
GDDR6X SDRAM


Installed Video Memory Storage Capacity:
10 GB


Video Memory Speed:
19 Gbps


Memory Bus Bandwidth:
320 bit


Memory Bandwidth:
760 GB/s


Interface Provided


HDMI Interface Quantity:
1


HDMI Interface Connector Type:
HDMI (Type A)


DisplayPort Interface Quantity:
3


System Requirements


External Power:
2 x 8 pin


PSU Output Power Required:
750 W


Miscellaneous


Cooling System Type:
VGA Cooler


Card Slot Width:
3 slot


Video Card Features:
RGB LED


Included Accessories:
Quick Start Guide


Dimensions & Weight Device


Depth (mm):
300 mm


Width (mm):
135 mm
