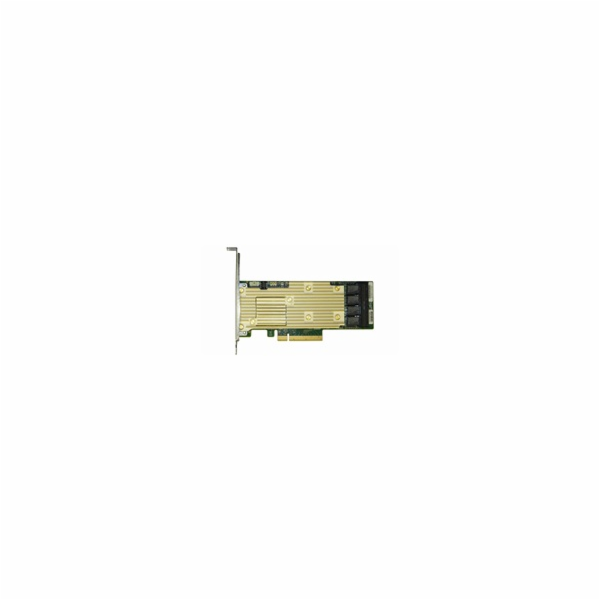

Intel® RAID tri-mode Adapter RSP3TD160F 16P intenal, 4GB, R0,1,10,5,50,6,60, SAS3516, PCIe3.0 x8

Essentials


Download Specifications



Product Collection

Intel® RAID Controllers



Code Name

Products formerly Trinity Dunes



Status

Launched



Launch Date

Q3'17



Expected Discontinuance

2025



Target Market

Full-featured



Board Form Factor

Low-Profile MD2 PCIe AIC



Supported Devices

PCIe/SAS/SATA



Supported Operating Systems

Windows, Linux, VMWare



Compatible Cache Backup Options

AXXRMFBU7



RAID Level Supported

0, 1, 10, 5, 50, 6, 60



JBOD Mode

Yes



# of Ports Internal

16



# of Ports External

0



# of Devices Supported

240



Embedded Memory

4GB



PCIe Host Interface

PCIe x8 Gen3



IO Processor Model

SAS3516



Keying

PCIe x8 Connector



Connector Orientation

Vertical



Extended Warranty Available for Purchase (Select Countries)

Yes



Additional Extended Warranty Details

Intel® RAID Extended Warranty



Additional Features

Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.



Included Items

(1) Intel® RAID Adapter, (1) low-profile mounting bracket






Supplemental Information




Description

Tri-mode PCIe(NVMe)/SAS/SATA Full-Featured RAID Adapter, 16 internal ports
