Kaiser Bilderfassungs-Set R2 CP 24D

Montážní deska: ano
Osvětlení: ano
držák: ano
Max. zátěž (kg): 1.5
Fotoaparát- Závit: 1/4"
Typ lampy: LED
Max. barevná teplota (Kelvin/K): 5600
Výška sloupu: 60
Velikost zobrazovací desky (cm): 40 x 42
Barva: černá

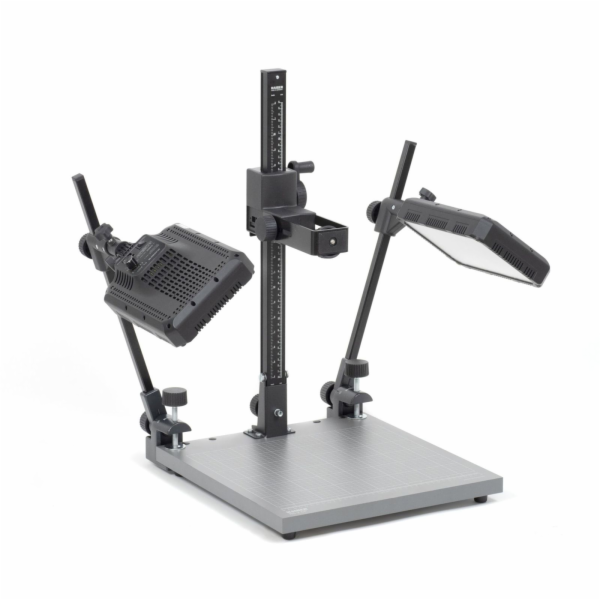

Kaiser R2 CP 24D Document Capture Set

A precisely aligned document, evenly illuminated and ready for digital capture – this set provides the foundation for professional reproductions. Whether in the archive, studio, or on the go, you can align your camera with precision and work with consistent lighting quality. The sturdy construction ensures reliable results with every shot.

Lighting that reveals detail
Two daylight lamps with high colour rendering provide even illumination without distracting reflections. The lamps can be adjusted in height, tilt, and orientation – allowing you to control the light direction precisely as needed. The dimmable brightness enables flexible adaptation to different originals.

Portable and thoughtfully designed
The set folds compactly and can be safely transported in the padded case. The guide column, marked in both centimetres and inches, allows for precise height adjustment via hand crank. The camera arm can be moved horizontally to fine-tune the distance to the original. This ensures reproducible results – even when working in different locations.

Features:


Even illumination via two dimmable daylight lamps
High colour rendering index for accurate reproductions
Height-adjustable lamps with pivoting support arms
Reflection-free baseboard with grid and measurement scales for precise alignment
Guide column with scale and hand crank for accurate height adjustment
Horizontally adjustable camera arm for fine-tuning capture distance
Sturdy aluminium clamps for secure lamp positioning
Folds flat for space-saving transport
Padded transport case with shoulder strap for mobile use
Light source: 2 x 120 high-CRI LEDs (SMD)
Colour temperature: 5600 Kelvin
Colour rendering index (CRI): 95
Power consumption: 2 x 24 W
Support rods: approx. 47 cm each
Cross-section: 16 x 16 mm
Dimensions (W x H x D): 40 x 2.5 x 42 cm
