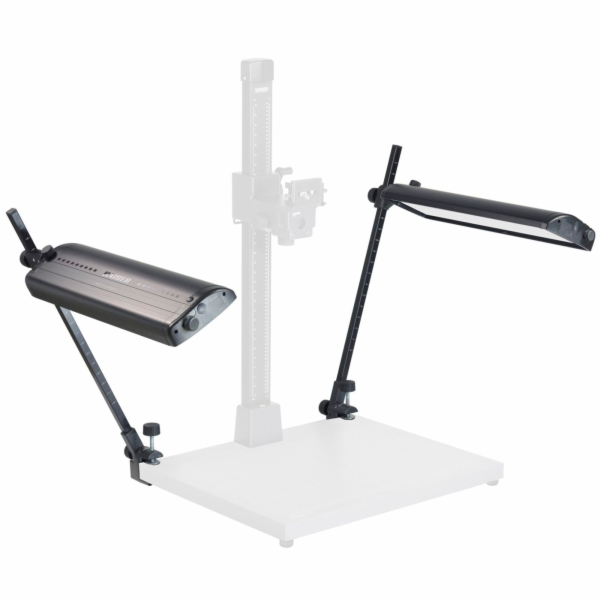

Kaiser RB 561 AB LED Beleuchtungseinrichtung

Osvětlení: ano
Typ: Stálé světlo
Typ lampy: LED
Vybavení (W): 2 x 38
Max. barevná teplota (Kelvin/K): 5600
Výška sloupu: 76
Velikost zobrazovací desky (cm): 20 x 20
Šířka (cm): 36
Délka (cm): 75
Barva: černá / stříbrná
Hmotnost (kg): 8,2

LED Lighting Unit RB 561 AB

This LED lighting unit provides even and soft illumination of your workspace – completely free from disturbing UV or infrared components. The two panel lights operate flicker-free and emit daylight-like light with high colour rendering. Passive cooling via the LED board and aluminium housing ensures stable performance.

Adjustable to suit your workflow
Each light is continuously dimmable and can be individually positioned. The housings are made of anodised aluminium and can be tilted, shifted and adjusted in height. The soft diffusers are removable, allowing you to adapt the light intensity to your needs.

Securely mounted and easy to operate
The vertical support rods with height markings can be tilted using locking joints. Mounting is done with sturdy cast aluminium clamps with a span of up to 48 mm. Power is supplied via cables with inline switches – for straightforward operation.

Features:


Two panel lights with daylight-like illumination for even lighting
Free from UV and infrared components – for comfortable working conditions
Flicker-free operation thanks to constant current driver
Each light contains 264 selected SMD LEDs with high light quality (CRI 96)
Continuously dimmable for personalised light control
Housing made of anodised aluminium – stable and adjustable
Removable soft diffusers for variable light intensity
Support rods with height markings and tiltable locking joints
Secure mounting with cast aluminium clamps up to 48 mm span


Technical Specifications:


LED arrays: 2 x 264 SMD LEDs
Colour temperature: 5600 K
Colour rendering index: CRI 96
Beam angle of LEDs: 100°
Illuminance (measured at maximum homogeneity on a DIN A3 template):

with diffuser: 6100 lux,
without diffuser: 7200 lux


Power consumption: 2 x ? 38 W
Operating voltage: 220–240 V, 50/60 Hz or 120–277 V, 50/60 Hz
Light output area per light: 58 x 16.5 cm
Vertical support rods: 76 cm, cross-section 20 x 20 mm
Cables: each 2.40 m
