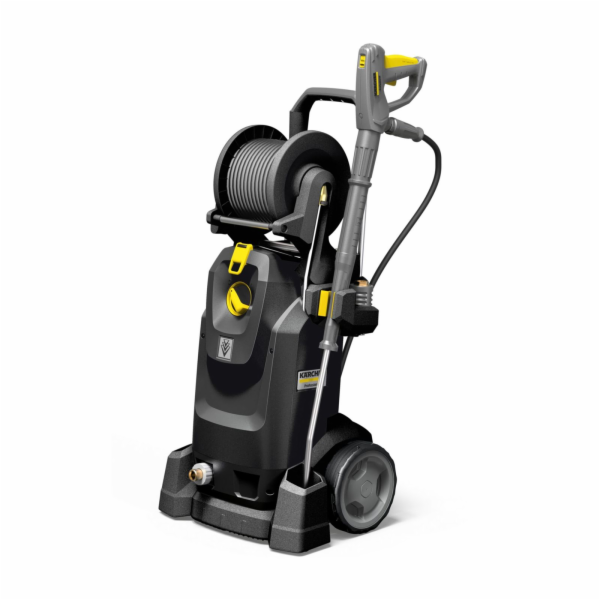

Kärcher HD 7/16-4 MX Plus Anniversary Edition

Příkon: 4,2
Průtočné množství (l/h): 350 - 700
Tlak (bar/MPa): 240 / 24
Vstupní teplota (max / ° C): 60
Způsob provozu: Síť
Typ: Vysokotlaký čistič
Barva: černá
Délka (mm): 400
Šířka (mm): 455
Výška (mm): 966
Hmotnost bez příslušenství (kg): 42,9

Kärcher HD 7/16-4 MX Plus Anniversary Edition

The HD 7/16-4 MX Plus Anniversary Edition in black convinces with ideal performance data of 700 l/ h and 160 bar as well as a comfortable hose reel, which ensures maximum efficiency and ease of use.

High quality equipment
Automatic pressure relief to protect the components extends their service life.Powerful, 4-pole, slow running electric motor. High-quality brass cylinder head.

Flexible operation
Designed for standing and lying operation, maximum stability in lying operation as the wheels do not touch the ground.

High mobility
Push bar that can be retracted at the touch of a button increases the compactness of the device and reduces the space required. Integrated storage options reduce set-up times.

Features:


Well thought-out accessory storage:

Holder for fixing the foam lance
EASY! Lock TR20 allows storage of the power nozzle or a surface cleaner directly on the device
Practical nozzle compartment to accommodate the rotor nozzle


Exemplary service friendliness:

Easy access to the cylinder head via open bottom
Quick access to the electrical box by simply removing the hood
Large, easily accessible water fine filter to protect the pump from dirt particles in the water


Energy and time saving solutions:

Fatigue-free EASY! Force high pressure gun
EASY! Lock quick-release fasteners: durable and robust, and 5 times faster than screwed


Increased energy efficiency:

Newly developed 3-piston axial pump with significantly reduced flow and pressure losses
20% increase in cleaning performance and energy efficiency


Integrated hose reel:

Maximum comfort when handling the high-pressure hose
Enables short setup times due to fast winding and unwinding
Prevents tripping and thus increases operational safety


Additional stand:

Increases the footprint of the device
Increases the tilt safety in standing operation


Length HD hose: 15 m
Type HD hose: Flex
Specification HD hose: DN 6, 250 bar
Integrated HD hose reel
ANTI! Twist
Pressure cut-off


Technical data:


Current type: 3 / 400 / 50 Ph / V / Hz
Flow rate: 350 - 700 l/h
Inlet temperature: 60 °C
Working pressure: 30 - 160 / 3 - 16 bar / MPa
Max pressure: 240 / 24 bar / MPa
Connected power: 4.2 kW
Connection cable: 5 m
Water intake: 3/4
Weight (with accessories): 42.9 kg
Dimensions (W x H): 400 x 455 x 966 mm
Colour: black


Scope of delivery:


Hand spray gun: EASY! Force
Jet tube: 840 mm
Power nozzle
Dirty Cutter
Servo Control
