Kärcher SP 9.500 Dirt

Připojovací závit (mm): 25 / 32 / 38
Připojovací závit (palce): 1, 1 1/4, 1 1/2
Sací výška (m): 6
Hloubka ponoru (m): 7
Průtok / tlak (m/bar): 6 / 0,6
Průtoková rychlost (l/h): 9500
Průtoková teplota (°C): 35
Max. tlak čerpadla (bar): 0,6
Výkon (Watt): 280
Napětí (V): 230 - 240
Držadlo: ano
Typ: Zahradní pumpa
Způsob provozu: Síť
Barva: žlutá / černá
Šířka (mm): 238
Výška (mm): 303
Hloubka (mm): 229
Hmotnost (kg): 3,8

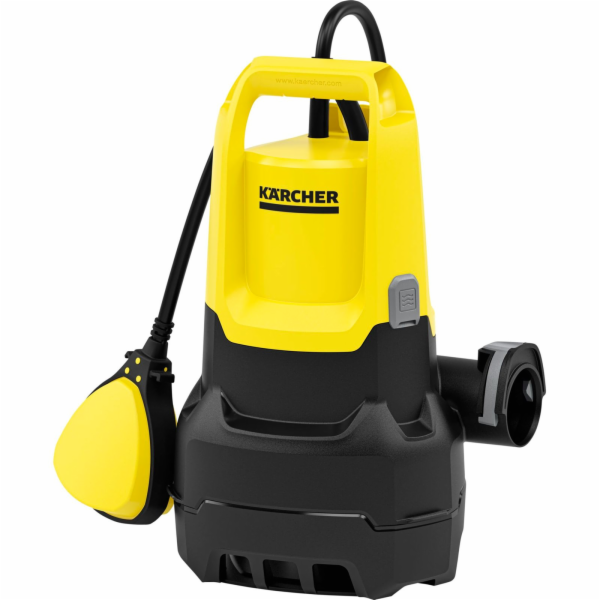

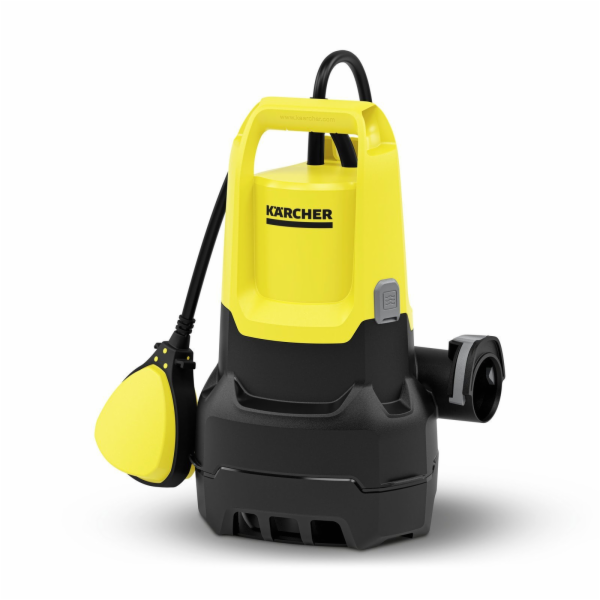

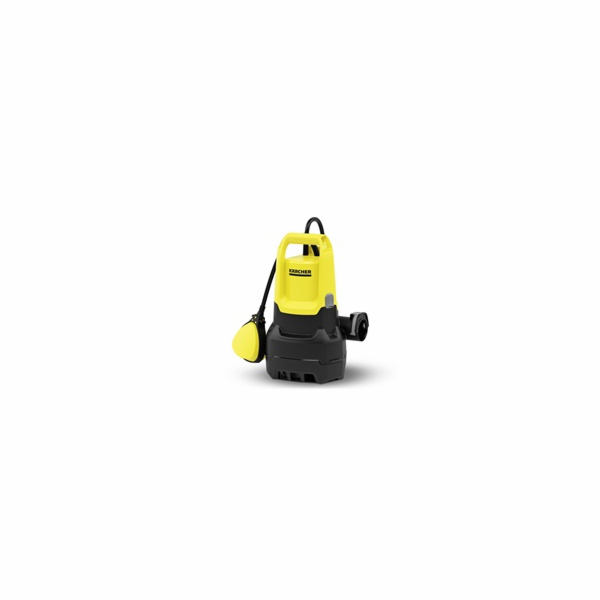

Kärcher SP 9.500 Dirt submersible pump

With a maximum pumping capacity of 9500 l/h, the SP 9.500 Dirt is the ideal entry-level model for quickly pumping out or pumping over rain barrels and garden ponds. It reliably pumps clean and dirty water with dirt particles up to 20 millimeters in size. For heavier soiling, an optional pre-filter can also be fitted to protect the pump impeller from clogging by branches, for example. The mechanical seal, familiar from the professional sector and installed in all submersible pumps, also ensures an extra-long service life for the pump. The submersible waste water pump is also equipped with a float switch that switches the device on and off depending on the water level, thus preventing it from running dry. And thanks to the option of fixing the float switch, the pump can also be operated at low water levels down to a residual water height of 25 millimetres. Another practical feature: the Quick Connect connection piece enables particularly quick and easy connection of 1", 1 1/4" and 1 1/2" hoses.

Features:


Ceramic mechanical seal: for an extra long service life
Float switch: Switches the pump on and off depending on the water level and thus also protects against dry running
Quick Connect: Connection piece for quick and easy connection of 1", 1 1/4" and 1 1/2" hoses or a G1 connection
Designed for dirty water: Reliable pumping of water with dirt particles up to 20 mm in size
Fixing option for the float switch: For switching to continuous operation
Comfortable carrying handle: Can be gripped comfortably and can also be used as a rope holder
Robust and easy-to-fit pre-filter accessory: Protects the pump from excessive soiling and prevents the pump impeller from becoming clogged


Technical data:


Max. motor power: 280 W
Max. flow rate: < 9500 (l/h)
Max. delivery temperature: 35 °C
Delivery head: 6 m
Max. pressure: 0.6 bar
Grain size max.: 20 mm
Immersion depth max.: 7 m
Min. residual water, manual: 25 mm
Residual water height: 25 mm
Connection thread: G1 1/2
Connection thread pressure side: G1 1/2 female thread
Connection cable: 10 m
Voltage: 230 - 240 V
Frequency: 50 Hz
Weight without accessories: 3.8 kg
Dimensions (L x W x H): 229 x 238 x 303 mm
Color: yellow / black


Scope of delivery:


Kärcher SP 9.500 Dirt submersible pump
Hose connection piece: G1, 1", 1 1/4", 1 1/2"
