KNIPEX MultiCrimp für PV, MC4/MC4 EVO2

Typ: Krimpovací kleště
Typ rukojeti: Vícesložkový obal
Celková délka (mm): 250
Barva: červená / modrá
Délka (cm): 250
Šířka (cm): 75
Výška (cm): 28
Hmotnost (g): 878

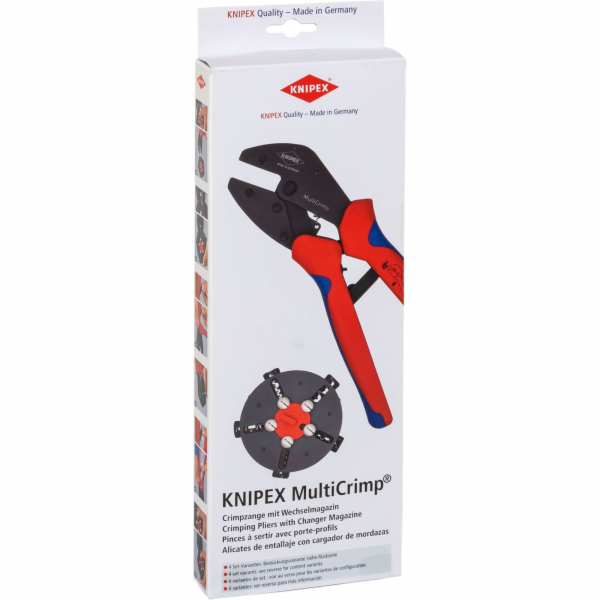

KNIPEX MultiCrimp Crimping Tool with Changeable Magazine

The KNIPEX MultiCrimp crimping tool is an essential tool for anyone working with photovoltaic systems. With just one tool and three crimp inserts, you can securely and efficiently crimp various cables and connectors. Changing the crimp inserts is quick and easy, without the need for additional tools.

Versatile Application Possibilities
The crimping tool is ideal for PV cables, grounding conductors, and wiring to the meter cabinet. With the crimp insert 97 39 42, you can crimp connectors for PV conductors, while the crimp insert 97 39 13 is suitable for uninsulated cable connectors. The crimp insert 97 39 08 allows crimping of insulated and uninsulated ferrules.

Practical Storage and Expandability
The changeable inserts are securely and safely stored in a round magazine that can hold up to five crimp inserts. Additionally, the crimping tool can be expanded with optional crimp inserts to cover even more application possibilities.

Features:


Universal crimping tool for photovoltaic systems
Three crimp inserts for various applications

97 39 42: For MC4®/MC4® EVO2 connectors (4 / 6 mm2)
97 39 08: For insulated and uninsulated ferrules (0.25 – 6 mm2)
97 39 13: For uninsulated cable connectors (0.5 – 10 mm2)


Quick change of crimp inserts without tools
For PV cables, grounding conductors, and meter cabinet wiring
Secure storage of changeable inserts in the round magazine
Expandable with optional crimp inserts
Consistently high crimp quality through precision inserts
Locking mechanism for safe use
Compatibility with MC4 and MC4 Evo 2 connectors
Dimensions (W x H x D): 250 x 75 x 28 mm
Weight: 885 g

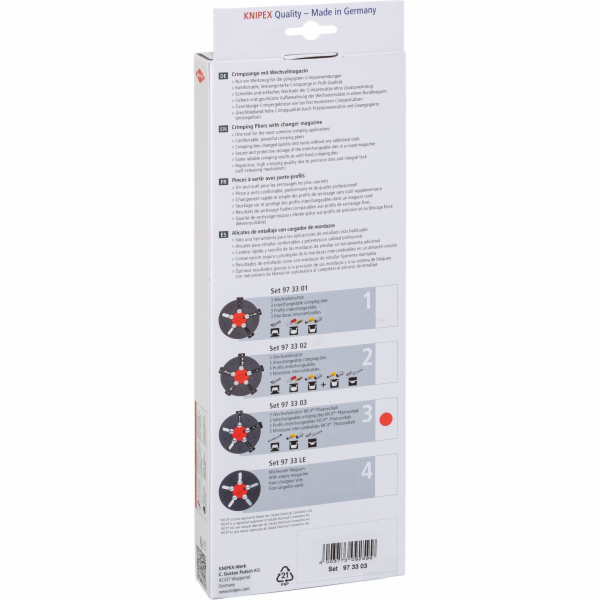

Scope of delivery:


KNIPEX MultiCrimp crimping tool
Three crimp inserts: 97 39 42 / 97 39 13 / 97 39 08
Round magazine for changeable inserts
