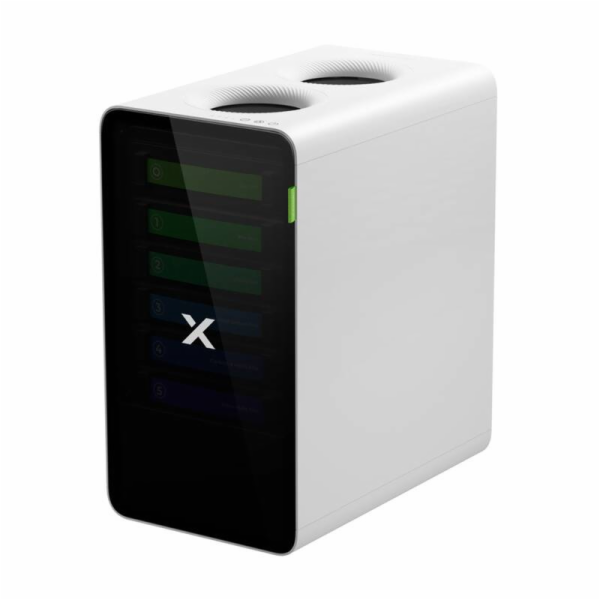

xTool AP2 V1.0 Air Purifier SafetyPro Standard White

Hloubka (mm): 491
Barva: černá / bílá
Šířka (mm): 290
Výška (mm): 542
Typ: Exhaust Air Filter

xTool SafetyPro AP2 Exhaust Filter
To keep the air clean while cutting or engraving, a combination of separation, filtration and air guidance is useful. The AP2 works exactly at this point and helps you remove particles and gases. The structure is suitable for longer work phases and brings together the necessary steps, so you can stay focused on your tasks.
Well-designed filtration system The layers of the AP2 build on each other and guide the air step by step through different levels. The rotating structure separates larger particles in advance before the first layer captures visible components. A following layer collects smaller particles and reduces the amount of fine residue. Two consecutive carbon layers bind various gaseous substances and odour particles, while a final fine-pored structure catches the smallest particles mechanically. This creates a construction that processes different particle sizes one after another.

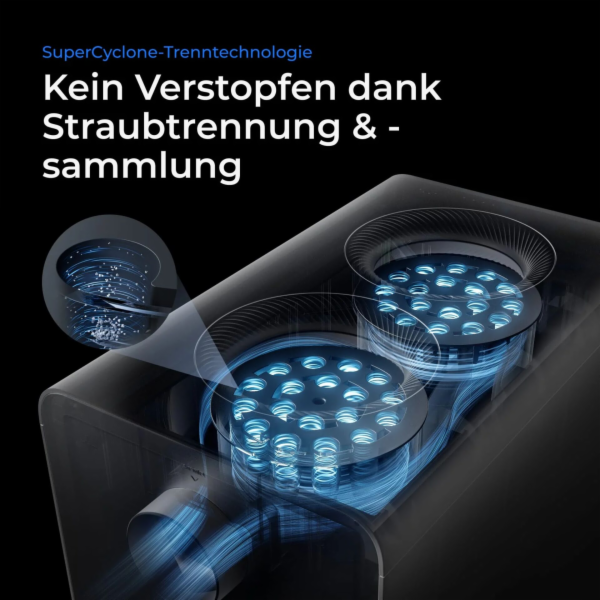

Cyclone separation for large particles Inside, a system of 36 cyclones guides the incoming air into rotating flows. Through this separation, larger particles collect before reaching the filter layers, which eases the load on the structure. The separated components are collected, keeping the airflow stable and reducing interruptions. This preliminary step provides a solid base for the following layers.
Multi-layer filter structure for fine particles The air then passes through several layers designed for different particle sizes. Visible particles are captured first before the fine dust level collects smaller components down to 0.3?µm. A dense carbon layer is also included to reduce different odour elements. This structure helps remove smoke as well as finer substances from the air.
Adjustable airflow for different materials The AP2 offers a 4-level airflow control, so you can adapt the amount of air intake to your material. The levels allow you to work more gently with sensitive materials or increase the airflow when more smoke develops. At the same time, the 55?dB operation stays quiet enough for smaller work areas.
Compatibility and use in your work environment The AP2 can be connected to various devices used in the laser sector. When connected to compatible models, switching on and off can happen automatically, which makes use more structured. The 120-watt motor supports stable airflow for both short and long projects.
Features:
36-cyclone separation helps remove large particles Multi-layer structure helps process different particle sizes Pre-separation supports the capture of larger particles Pre-filter layer holds back visible components Fine dust layer reduces smaller particles such as PM2.5 Carbon structure binds gases Dense carbon grid absorbs odour particles Fine final layer captures very small particles Fine dust level captures particles down to 0.3?µm Dense carbon layer reduces gaseous substances and odours 4-level airflow control suitable for different materials 150?m3/h airflow supports cleaning of desktop workspaces Automatic on/off with compatible devices possible 120-watt motor contributes to steady airflow Case shape enables space-saving integration into work areas Pre-separation extends the service life of the following filter layers Washable pre-filter elements support reuse

Specifications:
Airflow: 150?m3/h (AP2) Filtration system: 6-layer filtration Number of cyclones: 36 (AP2) Filter service life: standard capacity according to manufacturer Airflow control: 4 levels Noise level: 55?dB Power: 120?watts Dimensions (W × H × D): 29 × 54.2 × 49.1?cm

Compatible with:
F2, F1 Ultra, F2 Ultra (both versions), F2 Ultra UV, M1 Ultra, P2S, S1, xTool OS1 Automatic Shaker Oven Machine; in manual mode: F1, F1 Lite, M1, P2, D Series
