LC-Power LC6750G-SI V3.1

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 10
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Přetížení (OPP): ano
El. impulzy (SIP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 135
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 1x 4+4pin
EPS12V: 1x 8pin
PCIe: 2x 6+2pin
PCIe 5.0 (12VHPWR): 1x
S-ATA: 6x
P-ATA / IDE: 2x
Výkon (Watt): 750
Form faktor: ATX
Verze ATX: 3.1
certifikace: 80PLUS Gold
Účinnost při plné zátěži (%): 90
Barva: černá
Materiál: kov / plast
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 150
Hmotnost (kg): 2,14

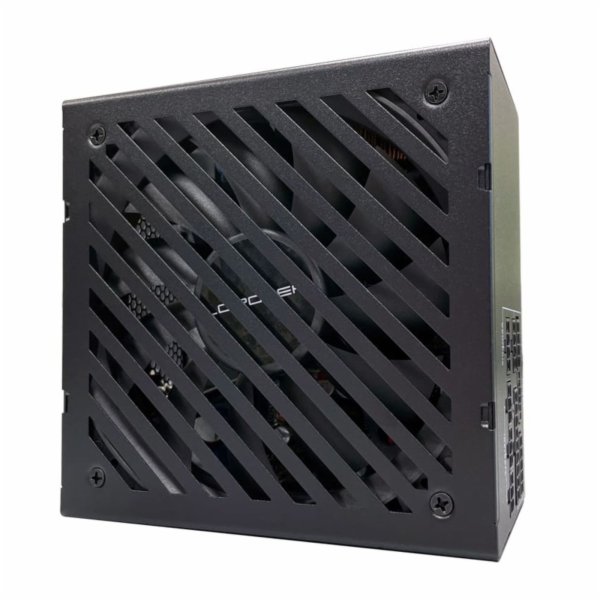

LC-Power LC6750G-SI ATX V3.1 PC Power Supply, PCIe 5.1, Fully Modular, 750 W

The LC6750G-SI V3.1 is an 80 PLUS GOLD-certified, fully modular ATX power supply that ensures good performance and system stability.
The power supply offers an output of 750 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and provides optimal cooling.

The power supply features a fully modular cable management system, offering optimal flexibility during the installation and configuration of your system.
It comes with high-quality, black sleeved cables that not only look good but also allow for easy and clean installation.

Features:


ATX Form Factor, V 3.1
Power: 750 W
Fan: 135 mm
Black sleeved flat cables
Fully modular cable management
80 PLUS Gold certified
Efficiency up to 90%
Powerful +12 V rail: 62.4 A
Connectors:

1x Mainboard 20+4-pin, Cable Length: 600 mm
2x Mainboard 4+4-pin 12V, 8-pin EPS, Cable Length: 1x 600 / 1x 750 mm
1x PCIe 5.1 / 12V, 12+4-pin, Cable Length: 1x 600 mm
2x PCIe 6+2-pin, Cable Length: 1x 550 / 1x 700 mm
6x SATA, Cable Length: 2x 450 / 2x 600 mm / 2x 700 mm
2x PATA, Cable Length: 2x 900 mm


PFC: Active
Input AC: 100 – 240 V

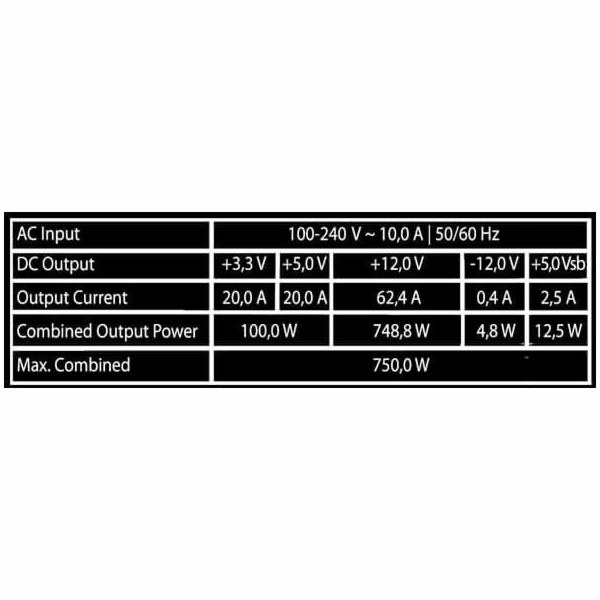

Output DC: 3.3 / 5 / 12 V (20 / 20 / 62.4 A)
Safety Circuits: OCP (Overcurrent Protection), OPP (Overpower Protection), OVP (Overvoltage Protection), SCP (Short Circuit Protection), SIP (Surge Protection), UVP (Undervoltage Protection)
Material: Metal, Plastic
Dimensions: 86 x 150 x 150 mm
Weight: approx. 2.14 kg
Color: Black
