Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 10
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Přetížení (OPP): ano
El. impulzy (SIP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 135
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Vedení kabelů: není modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 2x 4+4pin
EPS12V: 1x 8pin
PCIe: 2x 6+2pin
PCIe 5.0 (12VHPWR): 1x
S-ATA: 4x
P-ATA / IDE: 2x
Výkon (Watt): 850
Form faktor: ATX
Verze ATX: 3.1
certifikace: 80PLUS Bronze
Účinnost při plné zátěži (%): 85
Barva: černá
Materiál: kov / plast
Šířka (mm): 150
Výška (mm): 86
Hloubka (mm): 150
Hmotnost (kg): 1,74

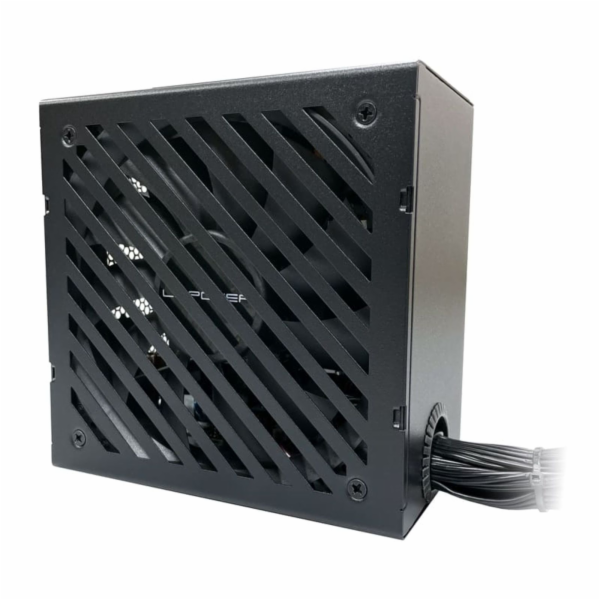

LC-Power LC6850B-SI V3.1, PC Power Supply, PCIe 5.1, 850 W
The LC6850-SI V3.1 is an 80 PLUS BRONZE-certified ATX power supply that provides good performance and system stability. The Integrator series power supply offers a power output of 850 watts and is a reliable power solution for a variety of applications. Equipped with a quiet 135 mm fan, it operates efficiently and ensures powerful cooling. It is ideal for all mid-range systems.
It features a 20+4-pin mainboard connector that is compatible with most motherboards, as well as a 550 mm 4+4-pin mainboard 12V connector, a 750 mm 4+4-pin mainboard 12V connector, four SATA and two PATA, providing stable power for high-performance CPUs, hard drives, and optical drives. For graphics cards, it has two PCI-Express 6+2-pin connectors and a powerful PCI-Express 5.1 12V 2x6 12+4-pin connector, enabling direct and reliable power for multiple GPUs.
Features:
ATX Form Factor, V 3.1
Power: 850 W
Fan: 135 mm
Black flat cables
80 PLUS Bronze certified
Efficiency up to 85%
Six safety circuits
DC-to-DC technology
Powerful +12 V rail: 70.8 A
Connectors:
1x Mainboard 20+4-pin, Cable Length: 550 mm
2x Mainboard 4+4-pin 12V, 8-pin EPS, Cable Length: 1x 550 / 1x 700 mm
1x PCIe 5.1 / 12V, 12+4-pin, Cable Length: 1x 600 mm
2x PCIe 6+2-pin, Cable Length: 1x 550 / 1x 700 mm
4x SATA, Cable Length: 2x 450 / 2x 600 mm
2x PATA, Cable Length: 2x 750 mm
PFC: Active
Input AC: 100 – 240 V
Output DC: 3.3 / 5 / 12 V (20 / 20 / 70.8 A)
Safety Circuits: OCP (Overcurrent Protection), OPP (Overpower Protection), OVP (Overvoltage Protection), SCP (Short Circuit Protection), SIP (Surge Protection), UVP (Undervoltage Protection)
Material: Metal, Plastic
Dimensions: 86 x 150 x 150 mm
Weight: approx. 1.88 kg
Color: Black
