LC-Power LC700SI V2.31

Vstupní napětí (V): 180 - 240
Intenzita proudu (amper): 7
Zkrat (SCP): ano
Proudové špičky (OCP): ano
Přetížení (OVP): ano
Přehřátí (OTP): ano
Přetížení (OPP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 140
Typ PFC (Power Factor Correction): Aktiv-PFC
Síťový vypínač: ano
Vedení kabelů: není modulární
ATX-Mainboard: 1x 20+4pin
ATX12V: 2x 4+4pin
EPS12V: 1x 8pin
PCIe: 3x 6+2pin
S-ATA: 6x
P-ATA / IDE: 3x
Lüfter: 1x
Výkon (Watt): 700
Form faktor: ATX
Verze ATX: 2.31 / EPS 12V
certifikace: 80PLUS
Účinnost při plné zátěži (%): 85
Barva: černá
Materiál: kov / plast
Šířka (mm): 150
Výška (mm): 87
Hloubka (mm): 160
Hmotnost (kg): 1,59

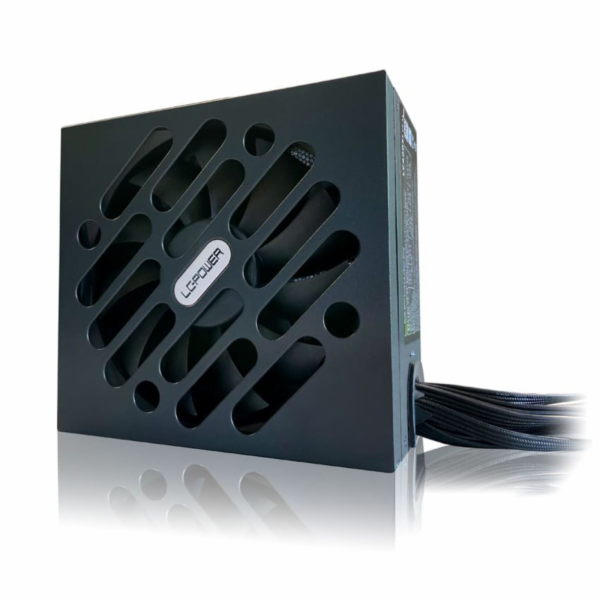

LC-Power LC700SI V2.31, 80 Plus PC Power Supply with ATX V2.31, 700 W

The 700 Watt power supply LC700SI V2.31 from the Integrator series is 80 PLUS Standard certified and offers high energy efficiency.

With ATX 2.31 support, it is compatible with a wide range of PC systems and ensures stable voltage supply. The integrated 140 mm fan provides quiet and efficient cooling even under high load. A power supply unit that optimally combines performance and efficiency.

Features:


700 Watt: Reliable power for your components
ATX form factor: Compatible with a variety of cases
80 PLUS STANDARD certification for up to 85% efficiency
Black sleeved flat cables for a tidy appearance
Five safety circuits (OVP, OCP, OPP, OTP, SCP) for maximum protection
Powerful +12 V rail with 58.3 A for high stability
140 mm fan for efficient and quiet cooling
3x PCI-Express 6+2-pin connectors for graphics cards
Practical dust protection with a removable dust filter


Technical Specifications:


Power: 700 W
Form factor: ATX, version 2.31
Fan: 140 mm
Non-modular
Connectors:

1x motherboard 20+4-pin, cable length: 550 mm
2x motherboard 4+4-pin 12V 8-pin EPS, cable length: 1x 600 mm / 1x 720 mm
3x PCI-Express 6+2-pin, cable length: 550 mm
6x SATA, cable length: 2x 480 / 2x 620 / 2x 760 mm
3x PATA, cable length: 1x 500 / 650 / 800 mm
1x FDD, cable length: 930 mm


PFC: active
AC input: 180 - 240 V, 7.0 A, 50 - 60 Hz
DC output: 3.3 / 5 / 12 V (14 / 14 / 58.3 A)
Efficiency: up to 85%
Certified: 80 Plus
Safety circuits: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP)
Material: Metal, plastic
Dimensions: 87 x 150 x 160 mm
Weight: 1.79 kg
Color: black
