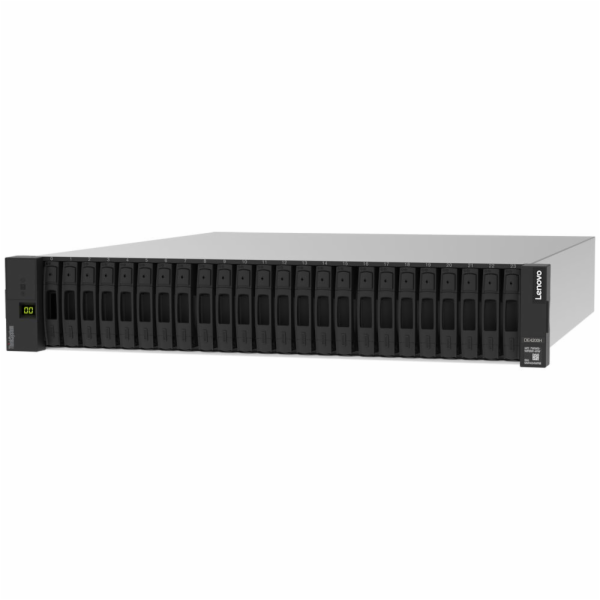

Storage DE4200H 64GB HICless Hybrid Flash 2U24 SFF

 Lenovo ThinkSystem DE4200H Hybrid Flash 2U24 SFF

Form factor:  2U rack mount
RAID levels:  RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. (RAID 3 can be configured only through the CLI.)
Controller system memory:  64 GB per system (32 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash)
Expansion enclosure support:  3x DE120S, 3x DE240S
Drives bays: With 3x DE120S LFF expansion enclosures: 24 SFF + 36 LFF drive bays: (60 drives)With 3x DE240S SFF expansion enclosures: 24 SFF + 72 SFF drive bays: (96 drives)


Drives:  10K rpm SAS HDDs10K rpm SAS FIPS HDDsSAS SSDs (1 DWD)

Storage capacity:  Up to 1.474 PB (96x 15.36 TB SFF SSDs)

Host connectivity:

Base ports (per controller enclosure with two controllers):


*4x 10/25 Gb iSCSI host ports (2 ports per controller)

Host connectivity ports provided using host interface cards (HICs). Listed below are the ports per enclosure. Each enclosure supports two controllers:


*8x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per controller)
*8x 10 Gb BaseT host ports (RJ45 Cat5/6 cables) (4 ports per controller)
*8x 16/32 Gb FC SFP+ host ports (SW fiber optics [LC]) (4 ports per controller)

Power supply:  Two redundant hot-swap 913 W (100 - 240 V) (2U24 and 2U12 enclosures) Platinum AC power supplies.
Standard software features:  Dynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), encryption (requires optional FIPS drives), and data assurance.
Dimensions (HxWxD mm):  85x449x511
Weight:  24.59 kg

Záruka:   3 years
Odkaz na stránku výrobce:  https://lenovopress.lenovo.com/lp2071-lenovo-thinksystem-de4200h-hybrid-storage-array
