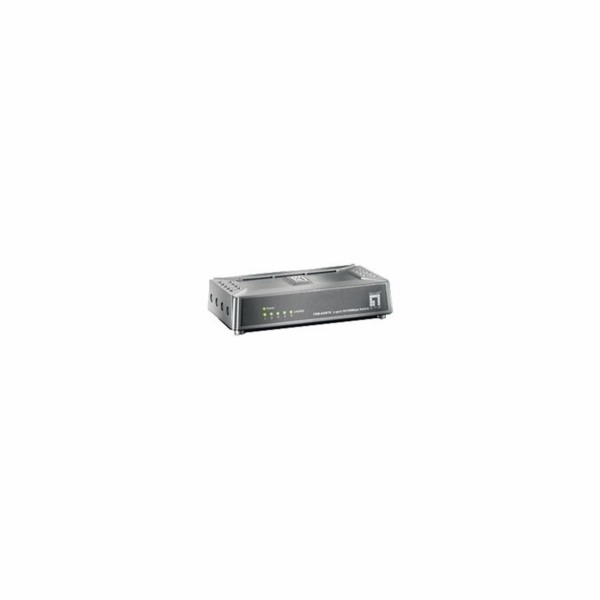

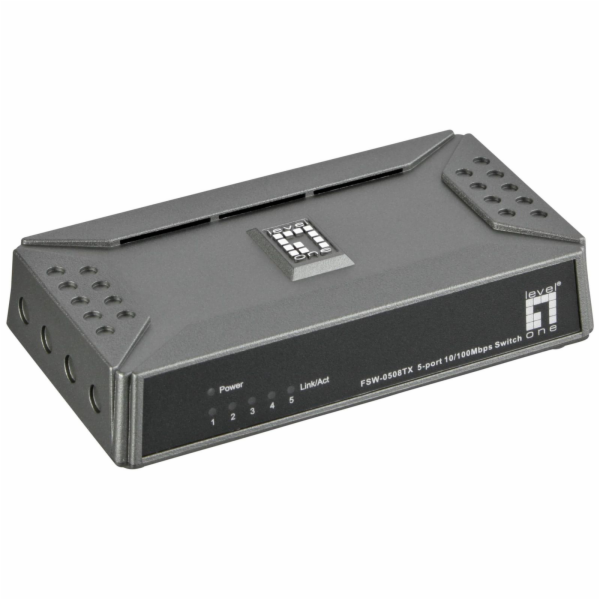

Level One FSW-0508 TX

Počet 10/100 Mbit/s Portů: 5
Jumbo rámeček: ne
PoE (Power over Ethernet): ne
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
Typ: Switch
Barva: černá / šedá
Šířka (mm): 125
Výška (mm): 30
Hloubka (mm): 69

FSW-0508TX 5 Port 10/100Mbps Fast Ethernet Switch Technical Data: Standard Conformance - IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-TX Fast Ethernet - IEEE802.3x Flow Control and Back-pressure ANSI/IEEE 802.3 Auto-negotiation Physical Ports - 5/8 10/100/Mbps STP RJ45 auto-negotiation ports - Auto MDI/MDIX crossover for all ports Forwarding and Filtering Rate - 14,880 pps per Ethernet port - 148,800 pps per Fast Ethernet port Network Cables - 10Base-TX: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m ) - 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) LED Indicators - Per Port: Link/Activity (100M green, 10M yellow) - Per Unit: Power Power Input - DC 7.5V/0.8~1A external power supply Physical Characteristics - Storage Temperature: -40°C to 70°C - Operational Temperature: 0°C to 50°C - Storage Humidity: 5% to 90% RH - Operational Humidity: 10% to 50% RH Dimensions - 127 mm x 70 mm x 28 mm (L x W x H) - Weight: 0.74kg Information in accordance with the General Product Safety Regulation (EU) 2023/988 (GPSR)Digital Data Communications GmbHIm Defdahl 10FD 44141 DortmundTel.: +49 231 9075 0E-Mail: info@digital-data.deInternet: www.level1.com
