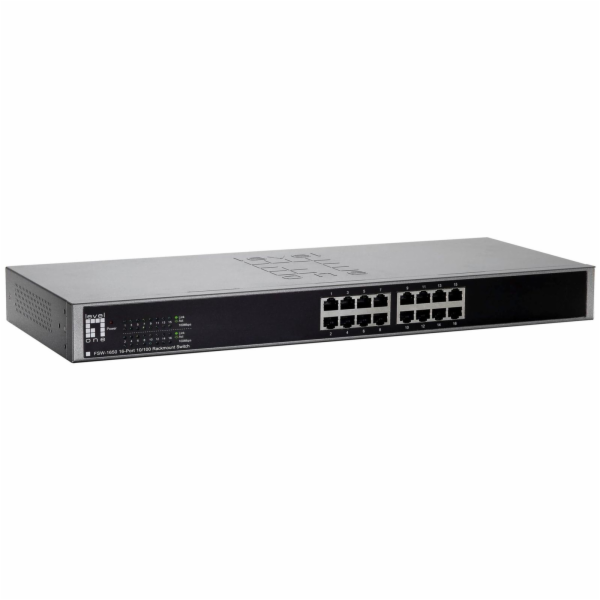

Level One FSW-1650 19" 16-Port 10/100Mbps Switch

Počet 10/100 Mbit/s Portů: 16
Jumbo rámeček: ne
PoE (Power over Ethernet): ne
Možnost montáže na stojan: ano
IEEE 802.1p: ano
IEEE 802.3az Energy Efficient Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
Typ: Switch
Barva: černá / stříbrná
Šířka (mm): 180
Výška (mm): 44
Hloubka (mm): 440
Hmotnost (g): 2050

Level One FSW-1650 - 19" 16-Port Fast Ethernet Switch

Features:


Provides 16 Fast Ethernet port connections
Supports a total back plane of up to 3.2Gbps
Wire-speed and non-blocking forwarding rate
Support IEEE 802.1P QoS (WRR 8:1)
Supports Auto-negotiation on all ports
Store-and-forward switching for error-free transmission
Supports full-duplex IEEE802.3x flow control
Accessory kit for mounting into a 19� server rack
Internal power supply
Power save up to 16% compare to Non Green Switch with similiar funtions


Product Overview

The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features

The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.

The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design

The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.

Quick Configuration and Easy Maintenance

The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.
