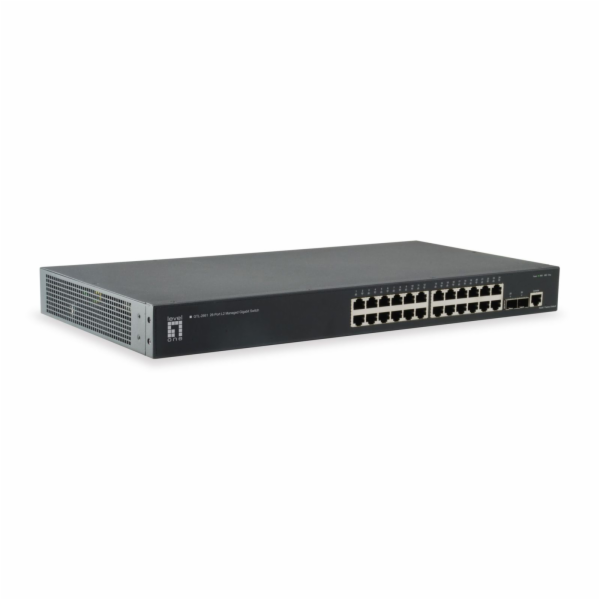

LevelOne GTL-2661 KILBY 26-Port L2-Gigabit Switch

Počet Gigabit-Portů: 26
Počet SFP Portů: 2x SFP+
Jumbo rámeček: 10K (max.)
PoE (Power over Ethernet): ne
Možnost montáže na stojan: ano
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet: ano
IEEE 802.3ad Link Aggregation Control Protocol: ano
IEEE 802.3az Energy Efficient Ethernet: ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
IEEE 802.3x Flow Control (Full-Duplex Flow Control): ano
IEEE 802.3z 1000-BASE-SX, Gigabit Ethernet: ano
Typ: Switch
Barva: černá
Šířka (mm): 440
Výška (mm): 44
Hloubka (mm): 220
Hmotnost (g): 2290

LevelOne GTL-2661 KILBY 26-Port L2-Gigabit Switch

The GTL-2661 series includes 26-port high-performance Gigabit Ethernet Layer 2 switches; 24x 10/100 / 1000BASE-T ports, two 10G SFP+ ports, and a 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where high-end or network file servers can be connected via fiber ports. It can also be deployed as a backbone upgrade or provide Gigabit for the desktop for power users.

Features:


24x Gigabit Ethernet ports and 2x 10 Gigabit SFP+ slots
IEEE 802.3ad LACP for automatic port aggregation
IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
Provides Wos control for traffic and bandwidth management based on IP DSCP
MLD, Telnet, SNMP V1, V2c & V3, RMON, web browser and TFTP management
Dynamic ARP Inspection (DAI) protects switches from ARP spoofing
Minimizes power consumption through modern energy efficiency (IEEE 802.3az)
Supports IPv4/IPv6 network operation
Virtual stacking supports up to 36 switches in a single logical stack for unified management, monitoring and configuration
Switching power: 88 Gbps
Backplane: 88 Gbit/s
Jumbo Frames: 10 KB
Mounting: 19" rack
Fanless
Standards

IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3z 1000BASE-X, Gigabit Ethernet
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1Q Virtual LANs (VLANs)
IEEE 802.1D MAC Bridges
IEEE 802.1d Standard Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy-Efficient Ethernet


Dimensions: 440 x 220 x 44 mm
Weight: 2.29 kg
Colour: black
