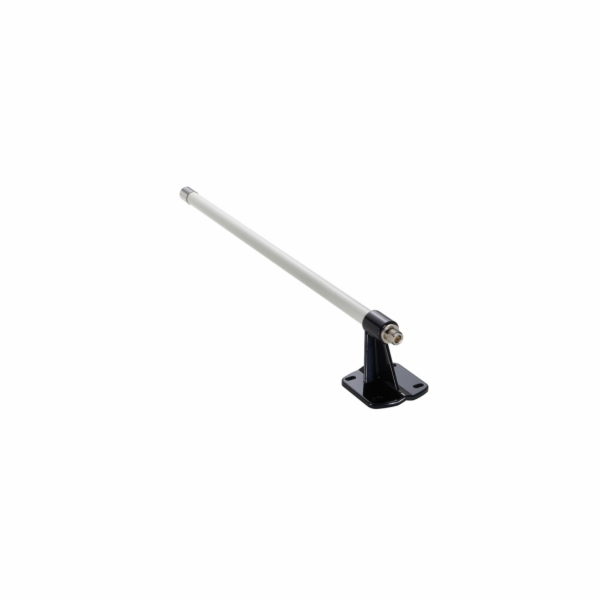

LevelOne In-/Outdoor Antenna Kit Omni-Direct. 2,4GHz 9dBi - OAN-2090

IEEE 802.11 b/g application in 2.4GHz Frequency Range
Surge protector included to avoid lighting damage
Omni-directional operation provides extended point to multi-point coverage
Standard N-jack connector
3 meter cable, with standard N-Plug and RPSMA- Plug

High-quality antenna with kit
OAN-2090 is an all-inclusive antenna kit for indoor/outdoor applications. It is a great solution to help improve the distance and performance of wireless local area networks (WLANs).

It is durable and reliable, perfectly suited for outdoor deployments in even the most severe weather conditions.

Bundled in the package is LevelOne’s ANC-2330. This is a 3-meter N plug to RPSMA plug cable that is included to help with flexible installation. OAN-2090 also includes a surge protector to protect against lightning strikes and a durable mounting kit for secure installation.

Frequency Range - 2.4~2.5GHz
Gain - 8.5± 0.5dBi
VSWR - 1.8:1 max
Polarization - Linear vertical
HPBW/Horizontal - 360 °
HPBW/Vertical - 15 °
Connector - N female

Environmental & Mechanical Characteristic

Survival wind Speed - 180km/hr
Operating Temperature - -20°C to + 65°C
Storage Temperature - -30°C to + 75°C
Impedance - 50Ů
Lighting Protection - DC ground
Material - Fiber Glass
Dimensions - H 525mm x W 77mm x D78mm
