LevelOne POT-0100 PoE over 2-wire-Transmitter

Hmotnost (g): 800
Rozměry: 120 x 90 x 80
Barva: černá
IEEE 802.3 10-BASE-T, Ethernet: ano
IEEE 802.3af Power Over Ethernet (PoE): ano
IEEE 802.3u 100-BASE-TX, Fast Ethernet: ano
Typ: PoE-Injektor
Max. přenosová rychlost (Mbit/Sek.): 100
Max. dosah (km): 0,5
Netzwerk (RJ45) Ports: ano

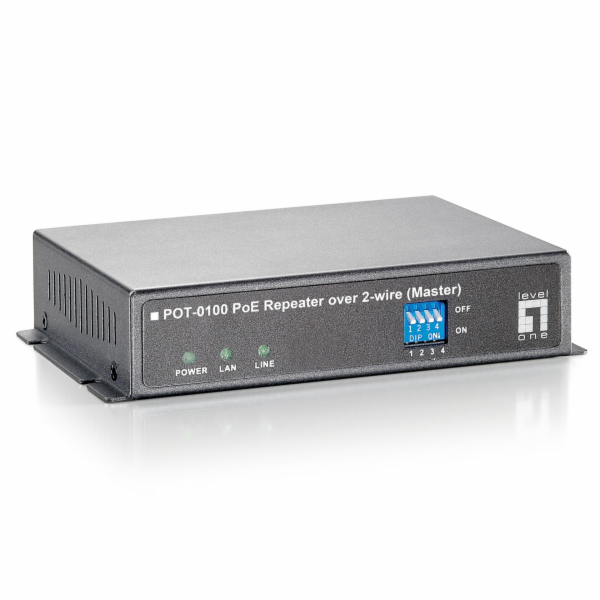

LevelOne POT-0100 PoE via 2-wire transmitter
Enables connection of 100 Mbps Fast Ethernet PoE devices via telephone cable up to 500 meters for 24AWG telephone cable.
Features:
Connections: 1x RJ45 Fast Ethernet, 1x RJ11 Supports 802.3af PoE Enables connection of 100 Mbps Fast Ethernet PoE devices via telephone cable up to 500 meters for 24AWG telephone cable Maximum data transfer rate of up to 60 Mbps Full duplex (max.) remote capability for PoE PD devices such as WiFi AP, IP camera, IP phones up to 15W Easy installation DIP switch for setting the bitrate Auto-MDIX for 10/100 Base-T Ethernet LAN ports Low waiting times for video / voice / data applications Output voltage: 44 - 57 V DC Compatible with IEEE 802.3 / IEEE802.3u Dimensions: 120 x 90 x 80 mm Weight: 800 g
