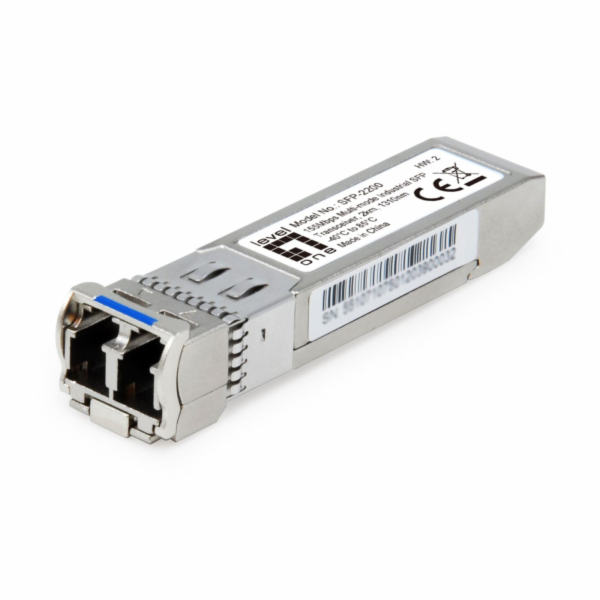

LevelOne SFP-2200 Industrial 155Mbps MM Transceiver

Porty sítě (LC): ano
Typ: Transceiver-Modul
Max. přenosová rychlost (Mbit/Sek.): 155
Max. dosah (km): 2
Barva: stříbrná
Rozměry: 13,6 x 57 x 8,5
Hmotnost (g): 21

LevelOne SFP-2200 Industrial 155 Mbps Multi Mode Transceiver, 2 km, 1310 nm

The LevelOne SFP-2200 is a powerful and efficient industrial multimode SFP transceiver. For use with Fast Ethernet, it offers a data transfer rate of up to 155Mbps on a Multi-Duplex fiber core. When using 50 and 125 microns of fiber optic cables, distances of up to 2 km can be achieved. The SFP-2200 transceiver operates at a wavelength of 1310nm with an FP laser diode as the light source and has an LC connector. This hot-swappable SFP transceiver offers the latest industry standard for full duplex Ethernet connectivity and is suitable for a wide operating temperature range.

Features:


100BASE-FX multi-mode fiber for connection up to 2 km
Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
Features duplex LC connection
Hot-swappable: No service interruption due to hot swap
Operating temperature range from -40°C to 85°C
Compatible with SFP Multi-Sourcing Agreement (MSA) standards
Reception sensitivity: -28 dBm
Wavelength: 1310 nm (FP Laser Optical Components)
Standards: 100BASE-FX, SFP MSA SFF-8074i Compliant, SONET OC-3/STS-3/SDH-1/STM-1 Compliant
Dimensions: 13.6 x 57 x 8.5 mm
Weight: 21 g
