Popis produktu

Designed for most 37" - 70" flat and curved screens
Weight capacity: 50 kg (110 lbs.)
Swivel: +/- 180°
Tilt: 0 to 25°
Height-adjustable extension pole: 1060 to 1560 mm (42 to 61 in.)
Post-leveling adjustment: +/- 3°
Ceiling plate adjustment for sloped ceilings: +/- 60°
Total dimensions, fully extended (L x W x H): 435 x 680 x 1778 mm (17.13 x 26.77 x 70 in.)
Pole diameter upper part: 48 mm (1.89 in.)
Pole diameter lower part: 40 mm (1.57 in.)
Ceiling plate width: 200 mm (7.87 in.)
Weight: 7 kg (15.43 lbs.)
VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400 Package Contents

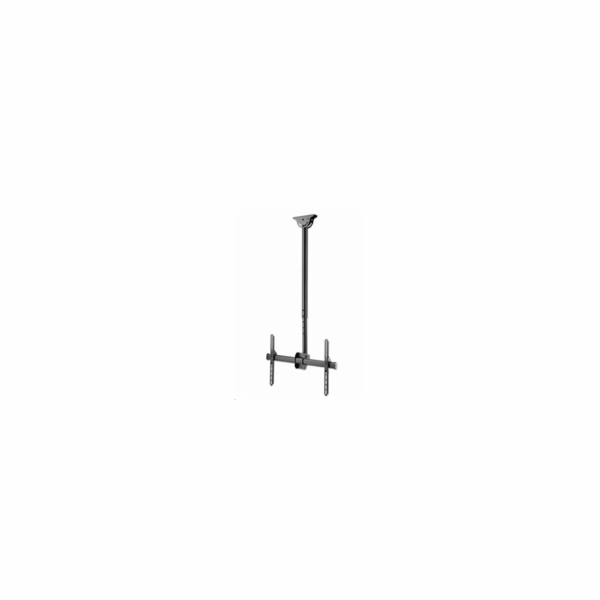

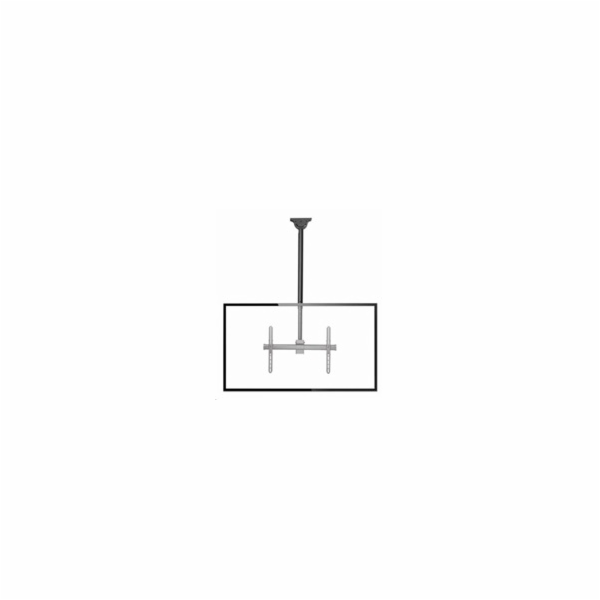

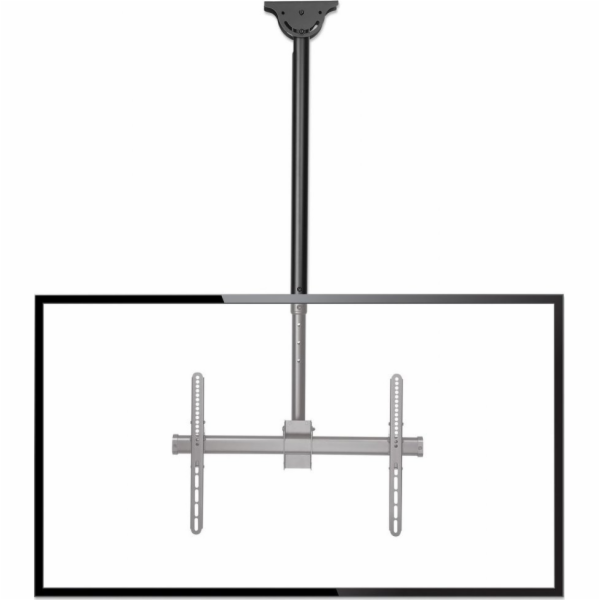

Full-Motion Height-Adjustable TV Ceiling Mount
Installation hardware with instructions

Full-motion height-adjustable TV Mount for sloped and flat ceilings to save wall and floor space
Upgrade viewing perspectives when wall and floor space is limited or low-level installations are impractical. This Manhattan TV Ceiling Mount holds a 37" to 70" LCD, LED or plasma display up to 50 kg (110 lbs.). It is supported by its powder-coated, heavy-duty steel construction for a secure and confident overhead installation.
Keep your guests and co-workers informed and entertained
Designed for both residential and business applications, this mount is ideal for conference rooms, lobbies, entrances, meeting spaces, classrooms, hospitality, digital signage, video conferencing, surveillance and more.
Viewable from anywhere in the room
The full-motion mount lets you rotate your display around the pole 360° without using tools and can be tilted up to 25° towards your audience for optimum visibility. Such great options keep images, contrast and colors clear, sharp and defined with no glare.
Adjustable height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling between 1060 and 1560 mm (42 to 61 in.).
Easy installation
Simply attach the included vertical brackets with built-in hooks to the back of your TV and then hang your display securely onto the mount. The mount s +/-3 degree post-installation leveling adjustment feature ensures ideal positioning even after hanging.
Suits flat and sloped ceilings
This Manhattan TV mount accommodates both ceiling types: You can adjust the ceiling plate +/- 60° to work with sloped and level (flat) surfaces.
Clean-looking, clutter-free cable management
Internal cable management keeps your cords concealed and organized to give a professional look to the installation.


Supports one 37" to 70" TV up to 50 kg (110 lbs.)
Optimized views with 0 to 25° tilt, 360° swivel and +/- 3° post-installation leveling adjustment
Ceiling plate with +/- 60° adjustment to suit sloped and flat ceilings
Telescopic extension pole from 1060 to 1560 mm (42 to 61 in.)
Heavy-duty steel construction with powder coating
Internal cable management for a clutter-free appearance
Easy hook-and-mount installation
Saves wall and floor space; ideal for conference rooms, lobbies, classrooms, digital signage, surveillance and more
Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400
Lifetime warranty

---
