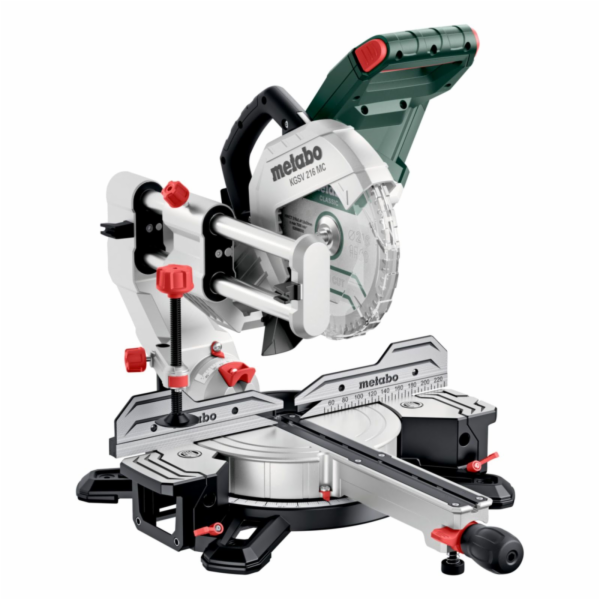

Metabo KGSV 216 MC Mitre Saw

Způsob provozu: Síť
Typ: Kapovací a pokosová pila
Pilový kotouč - průměr vrtání (mm): 30
Výkon řezání při 0° (mm): 70
Volnoběžné otáčky (min-1): 2200 - 5300
Počet zubů: 60
výstupní výkon (W): 1200
Funkce tahu: ano
Rukojeť: ano
Laserové navádění: ne
Pilový kotouč - průměr (mm): 216
Funkce pokosu: ano
Funkce náklonu: ano
Šířka (cm): 705
Materiál: Umělá hmota / Kov
Celková délka (mm): 705
Hloubka (cm): 555
Pracovní délka (mm): 305
Hmotnost (kg): 15,4
Barva: šedá / zelená
Výška (cm): 480

Metabo KGSV 216 MC Mitre Saw
If you value clean cuts and a space-saving design when sawing, this model gives you exactly that. The LED shadow line shows the cutting path directly on the workpiece, so you work without readjusting. The compact pull function saves space behind the device and makes positioning in your workshop easier.
Flexibility for your projects With the table that rotates on both sides and the tilting saw head, you carry out demanding mitre cuts. The speed adjusts to the material – whether wood, aluminium or plastic. The quick-release clamp holds everything securely, while the extendable table extensions support even long workpieces.
Precision and convenience in detail The locking points help you quickly set common angles. The soft start protects the motor and gearbox when switching on. The integrated chip extraction keeps your workspace clean, and with the depth stop you create grooves effortlessly.
Features:
LED shadow line shows the cutting path directly on the workpiece Compact pull function saves space behind the machine Rotating table and tilting saw head for flexible mitre cuts Variable speed for different materials such as aluminium and plastic Quick-release clamp secures the workpiece from above or front Extendable table extensions for long workpieces Locking points make it easier to set common angles Soft start protects motor and gearbox when switching on Chip extraction via integrated chip funnel keeps the workspace clean Dimensions (W x H x D): 70.5 x 48 x 55.5 cm Weight: 15.4 kg

Technical Specifications:
Maximum cutting width 90°/45°: 305 / 215 mm Maximum cutting depth 90°/45°: 70 / 40 mm Cutting capacity 90°/90°: 305 x 70 mm Cutting capacity 45°/45°: 215 x 40 mm Turntable setting left/right: 50 / 50 degrees Saw blade tilt left/right: 47 / 47 degrees Saw blade diameter: 216 mm No-load speed: 2200 – 5300 rpm Speed under rated load: 4200 rpm Cutting speed: 25 – 60 m/s Rated input power S1 100%: 1200 W Rated input power S6 20%: 1500 W Sound pressure level: 87 dB(A) Sound power level: 100 dB(A) Measurement uncertainty: 3 dB(A) Cable length: 2 m Dimensions (W x H x D): 70.5 x 48 x 55.5 cm Weight: 15.4 kg

Scope of delivery:
Tungsten carbide saw blade with 60 teeth 2 integrated table extensions Length stop Material clamp Tool for saw blade change Cable holder Chip collection bag
