Metabo Pump Mounting Set MSS 310 HWA/P M. ARMAT.

Připojovací závit (mm): 25,4
Připojovací závit (palce): 1
Typ: Instalační sada čerpadla
Barva: modrá / transparentní
Hmotnost (kg): 1906

Metabo pump assembly set MSS 310-HWA/P (0903061260)

Features:


Overall length: 310 mm
The filter prevents damage to the pump and the irrigation system caused by sand and dirt particles, max. burst pressure 28 bar
The non-return valve prevents the water from flowing back into the well or cistern
The ball valve (closed) prevents the water from flowing back into the well during maintenance work in the suction area, e.g. pump removal or filter cleaning
Quick-release coupling as a connection option for suction hose sets
Sealing without hemp or sealing paste thanks to sealing tape
Suitable for mounting on the suction nozzle of all garden pumps and automatic domestic water pumps with 1" internal thread
Garden pumps and automatic domestic water pumps require a short filter due to the lower overall height

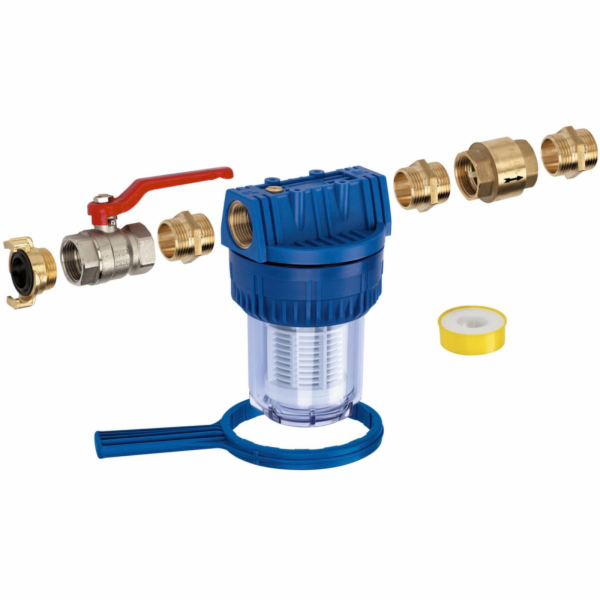

Set consisting of:


Filter for garden pump short, 1" female thread brass
Washable filter insert, 80 my
Double nipple brass, 1" female thread x 1" female thread
Non-return valve brass, 1" female thread x 1" female thread
Ball valve, nickel-plated brass, 1" female thread x 1" female thread
Quick coupling brass, 1" male thread
Thread sealing tape, 12 m roll
Filter spanner for loosening the filter bell
