Metabo Pump Mounting Set MSS 380 HWW M. ARMAT.

Připojovací závit (mm): 25
Připojovací závit (palce): 1
Typ: Instalační sada čerpadla
Barva: modrá / transparentní

Metabo MSS 380-HWW pump attachment kit (0903061278)

Features:


Mounting on the suction nozzle of all domestic waterworks with 1" internal thread
Filter with a pressure resistance of 28 bar protects the pump and irrigation system from sand and dirt
Non-return valve: prevents the water from flowing back into the well or cistern
Ball valve (closed): prevents water from flowing back into the well (during maintenance work in the suction area, e.g. pump disassembly or filter cleaning)
Quick-release coupling as a connection option for suction hose sets
Sealing tape: Sealing without hemp and without sealing paste
Length approx. 380 mm
Colour: blue / transparent

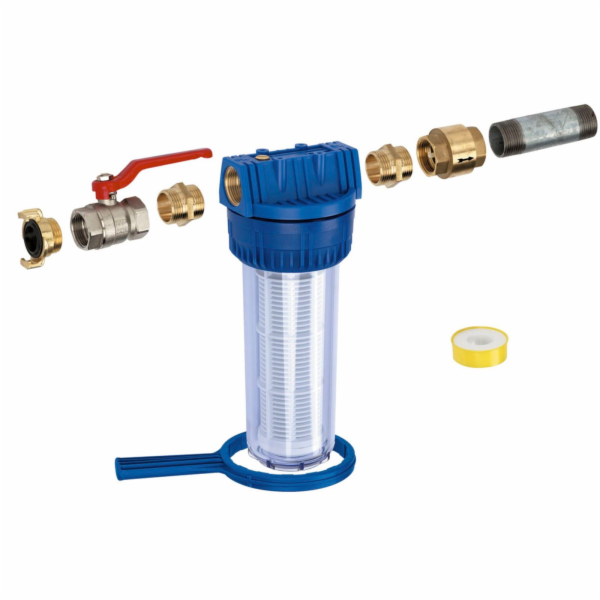

Contents of the set:


Filter spanner for loosening the filter bell
Domestic waterworks filter, long, 1" internal thread brass
Washable filter insert, 80 my
Double nipple brass, 1" female thread x 1" female thread
Non-return valve brass 1" female thread x 1" female thread
Ball valve, nickel-plated brass, 1" female thread x 1" female thread
Quick coupling brass, 1" male thread
Galvanised pipe nipple, 1" male thread x 1" male thread x 100 mm
Thread sealing tape, 12 m roll
