Metabo Set KGS 305 M + KSU 251

Volnoběžné otáčky (min-1): 0 - 3700
Pilový kotouč - průměr (mm): 305
Pilový kotouč - průměr vrtání (mm): 30
Počet zubů: 56
Rukojeť: ano
Funkce tahu: ano
Funkce pokosu: ano
Funkce náklonu: ano
Laserové navádění: ano
Výkon (Watt): 1600
Napětí (V): 230
Typ: Kapovací a pokosová pila
Způsob provozu: Síť
Celková délka (mm): 780
Barva: zelená / stříbrná
Materiál: hliník
Šířka (cm): 78,0
Výška (cm): 65,7
Hloubka (cm): 50.0
Hmotnost (kg): 18,6

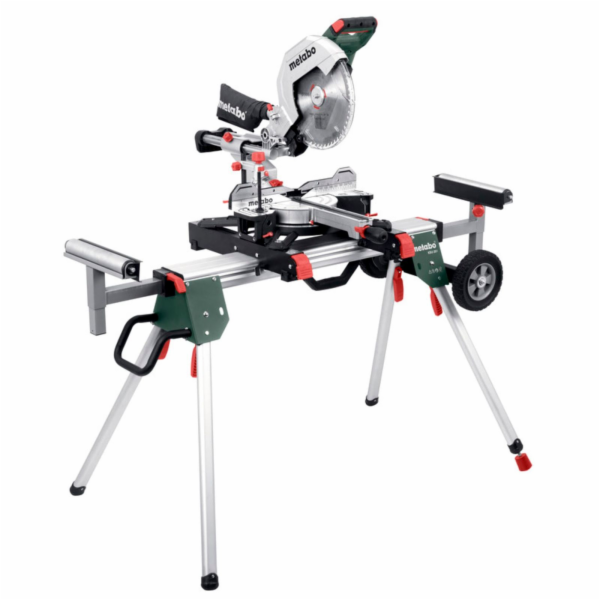

Metabo set KGS 305 M + KSU 251 crosscut saw + machine stand

Features:


Large cross-cut and mitre saw, mobile M-class
Precise, simple and user-friendly operation
Precision Cut Line: exact shadow cut line due to optimally placed LED
Large saw blade and powerful motor for high cutting performance
Rotary table with exact adjustment of common angles via locking points
Saw blade can be tilted up to 47 degrees on both sides
Robust construction made of die-cast aluminium for tough applications
Soft start
Integrated chip extraction
Extendable and removable table extension
Secure fixing of the workpiece from above or from the front by quick clamping device
Depth stop
Operating elements and scales clearly visible even from the working position
Ergonomic handle area


Scope of delivery:


Metabo KGS 305 M crosscut saw
Machine stand KSU 251
2 integrated table extensions
Crosscut fence
Material clamp
Tool for saw blade change
Cable rewind
Chip collection bag


Technical data:


Dimensions: 780 x 500 x 657 mm
Support surface: 345 x 770 mm
Max. Cutting width 90°/45°: 305 / 215 mm
Max. Cutting depth 90°/45°: 110 / 67 mm
Cutting capacity 90°/90°: 305 x 110 mm
Max. cutting capacity 45°/45°: 215 x 67 mm
Turning knob adjustment left/right: 50 / 60
Saw blade tilt left/right: 47 / 47°
Saw blade: 305 x 30 mm
Rated input power: 1600 W
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 2000 W
Idling speed: 3700 /min
Speed at nominal load: 3000 /min
Cutting speed: 59 m/s
Weight: 18.6 kg
Cable length: 2 m
Sound pressure level: 87 dB(A)
Sound power level (LwA): 100 dB(A)
Measurement uncertainty K: 3 dB(A)
