Cooler Master ventilátor Mobius 120

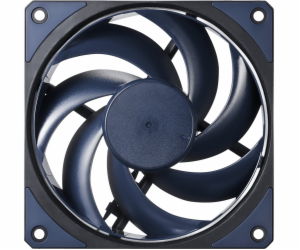

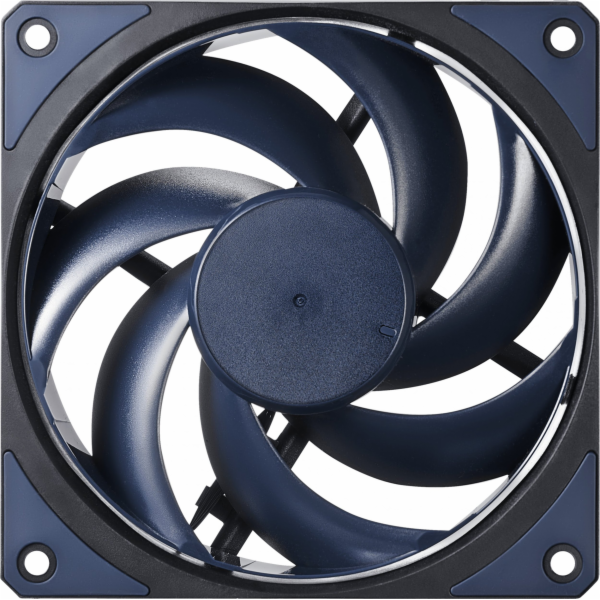

MOBIUS 120
Cooler Master is introducing the Mobius Series representing the performance line of fans with a new entry – Mobius 120. The Mobius 120 utilizes the new Ring Blade Design, with interconnecting fan blades for structural reinforcement, eliminating vibration for even more stability. The angled inner frame rim features chamfered side vents boost airflow with force induced pressure draw for maximum airflow. The sound output has been fine tuned to sub 6dB prominence noise levels for optimal acoustics without performance sacrifice. The Mobius Series fans are engineered for the perfect balance of quiet operation and unmatched cooling capabilities.

Ring Blade Design (RBD) - Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable fan rotation. and dynamic fan rotation
Pressure Acceleration Air Vents - Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
Loop Dynamic Bearing - New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance

TECHNICAL SPECIFICATIONS



Product Name
Mobius 120


Product Number
MFZ-M2NN-21NPK-R1


Exterior Color
Black


Fan


Dimensions (L x W x H)
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)


Profiles
Non LED


Speed (RPM)
0~2050 ± 10% RPM


Airflow (CFM)
107.1m3/h (63.1CFM)


Noise Level (dBA)
22.6 dB(A)


Bearing
Loop dynamic bearing


Pressure (mmH2O)
2.69 mmH2O


MTTF
>200,000 hours


Power Connector
4-Pin (PWM)


Rated Voltage (VDC)
12 VDC


Rated Current (A)
0.12 A


Safety Current
0.35 A


Power Consumption
1.44 W


Weight
179 g (0.38lbs)
