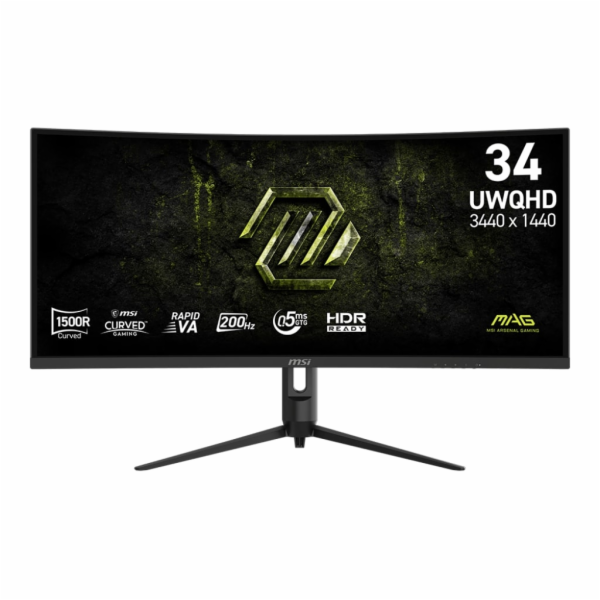

MSI Gaming MAG 342CQRF E20, 34" Rapid VA zakřivený /3440x1440(UWQHD)/200Hz/0,5ms/DP/2xHDMI/Výškově nast./Pivot/černá

MSI Gaming MAG 342CQRF E20, 34" Rapid VA zakřivený /3440x1440(UWQHD)/200Hz/0,5ms/DP/2xHDMI/Výškově nast./Pivot/černá

Website Name MAG 342CQRF E20
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 34" (86.36 cm)
Active Display Area (mm) 797.22(H) x 333.72(V)
Curvature Curve 1500R
Panel Type Rapid VA
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.23175(H)x0.23175(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~200Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 3500:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 71.51~285.31 KHz(H) / 48~200 Hz(V)
Refresh Rate 200HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms (Min.)
Response Time (Tr + Tf) 5.699ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 96%/86%
NTSC (CIE1931 area percentage/overlap) 87%/82%
sRGB (CIE1976 area percentage/overlap) 110%/95%
sRGB (CIE1931 area percentage/overlap) 122%/99%
Adobe RGB (CIE1976 area percentage/overlap) 95%/88%
Adobe RGB (CIE1931 area percentage/overlap) 90%/85%
DCI-P3 (CIE1976 area percentage/overlap) 90%/90%
DCI-P3 (CIE1931 area percentage/overlap) 90%/90%
Rec.709 (CIE1976 area percentage/overlap) 110%/95%
Rec.709 (CIE1931 area percentage/overlap) 122%/99%
Rec.2020 (CIE1976 area percentage/overlap) 63%/63%
Rec.2020 (CIE1931 area percentage/overlap) 65%/65%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440 x 1440 (Up to 200Hz)
Note_HDMI 3440 x 1440 (Up to 100Hz)
Note_DVI N/A
VESA DisplayHDR NA
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adaptor 19V 3.42A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 31
Annual Energy Consumption (KWh) 31
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter s KC safety Number HU10450-17082
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 90 mm
Adjustment (Pivot) -5° ~ 5°
VESA Mounting 75x75mm
Frameless Design Yes
Console Mode v
HDMI CEC v
Firmware Update v
Stand Attachment Method Toolless locking
Stand Type 3-way HAS (Tilt + Lift + Swivel)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope NA
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S073A-MNT
pcs/Carton 1
Pallet
pallet Q ty (by air) pcs 12
Q ty/20cy (by air) pcs 120
Q ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1319
Net Weight (by air) kg 97.2
Gross Weight (by air) kg 146
pallet Q ty (by sea) pcs 20
Q ty/20cy (by sea) pcs 200
Q ty/40cy (by sea) pcs 420
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2093
Net Weight (by sea) kg 162
Gross Weight (by sea) kg 235
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 808.60 x 269.97 x 423.97
Product Dimension with Stand (WxDxH) (inch) 31.83 x 10.63 x 16.69
Product Dimension without Stand (WxDxH) (mm) 808.60 x 119.67 x 363.95
Product Dimension without Stand (WxDxH) (inch) 31.83 x 4.71 x 14.33
Stand Dimension (WxDxH) (mm) 497.4 x 269.97 x 409.87
Stand Dimension (WxDxH) (inch) 19.58 x 10.63 x 16.14
Weight (Net kg) 6.95
Weight (Net lbs) 15.32
Weight Without Stand (kg) 5.4
Weight Without Stand (lbs) 11.9
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 91.8 x 21.4 x 48.9
Inside Carton Dimension (WxDxH) (inch) 36.14 x 8.43 x 19.25
Outer Carton Dimension (WxDxH) (cm) 92.9 x 22.3 x 50.3
Outer Carton Dimension (WxDxH) (inch) 36.57 x 8.78 x 19.8
Weight (Gross kg) 10.75
Weight (Gross lbs) 23.7
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Micro USB Type B cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 1
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 342CQ E20
Segment Name MAG
Series Name LCD
Segment Name3 MAG 342CQRF E20
Extra Info
EOL Date
Barcode Info
UCC14 10824142444181
UPC 824142444184
JAN
EAN 4711377392426
