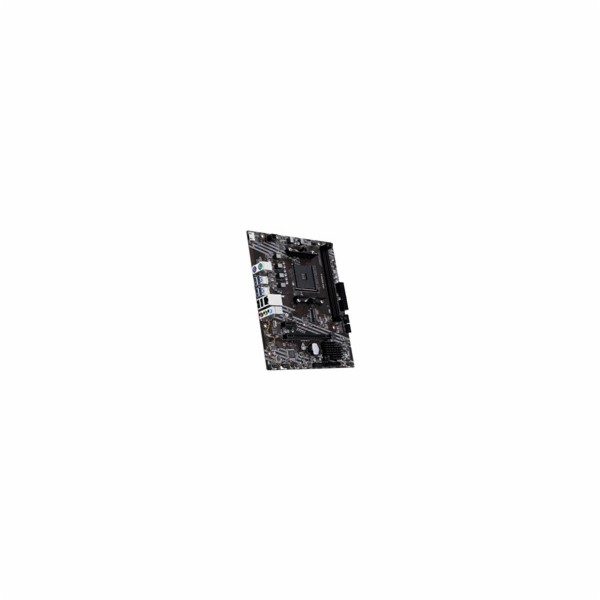

MSI MB Sc AM4 PRO A520M-S, AMD A520, 2xDDR4, 1xHDMI, mATX

MSI PRO A520M-S PRO A520M-S is engineered with PCIe 3.0 M.2, USB 5Gbps, and HDMI™ 1.4, ready for the AMD Ryzen™ 5000 series processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. Chipset AMD A520 CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 Memory 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Ryzen™ 5000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 4600+ MT/s • 1DPC 2R Max speed up to 3866+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. Graphics 1x HDMI™ Support HDMITM 1.4, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Expansion Slots 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) *The supported specification depends on installed processor. Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) LAN Realtek RTL8111H 1Gbps LAN Internal I/O Connectors 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 5Gbps Type A ports LED FEATURE 4x EZ Debug LED Operating System Support for Windows 11 64-bit Form Factor mATX 200mmx236mm
