MSI PRO B550M-P WIFI6E

MSI PRO B550M-P WIFI6E/AM4/DDR4/mATX

MSI PRO B550M-P WIFI6E

Chipset: AMD B550
Rozměrový formát: mATX 243.84mmx243.84mm
Podpora pro procesory: AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Patice procesoru: AM4

Paměť:

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking:
1DPC 1R Max speed up to 4400+ MT/s
1DPC 2R Max speed up to 3733+ MT/s
2DPC 1R Max speed up to 3866+ MT/s
2DPC 2R Max speed up to 3466+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
Grafické porty:
1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort

Supports DP 1.4, maximum resolution of 4K 60Hz
1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
Zvuková karta:

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Ethernet: Realtek RTL8111H 1Gbps LAN
WLAN + Bluetooth: Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
Rozšiřující sloty:

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G

USB:
Zadní USB

2x USB 2.0
4x USB 5Gbps Type A
Přední USB

4x USB 2.0
2x USB 5Gbps Type A
1x USB 5Gbps Type C
Interní porty:

Napájení

1× Power Connector (ATX_PWR)
1× Power Connector (CPU_PWR)
1× CPU Fan
2× System Fan
USB

4× USB 2.0 ports
2× USB 5Gbps Type-A ports
1× USB 5Gbps Type-C port
Ostatní

2× Front Panel (JFP)
1× Chassis Intrusion (JCI)
1× Front Audio (JAUD)
1× COM Port (JCOM)
2× Addressable V2 RGB LED connectors (JARGB_V2)
2× RGB LED connectors (JRGB)
1× TPM pin header (TPM 2.0)

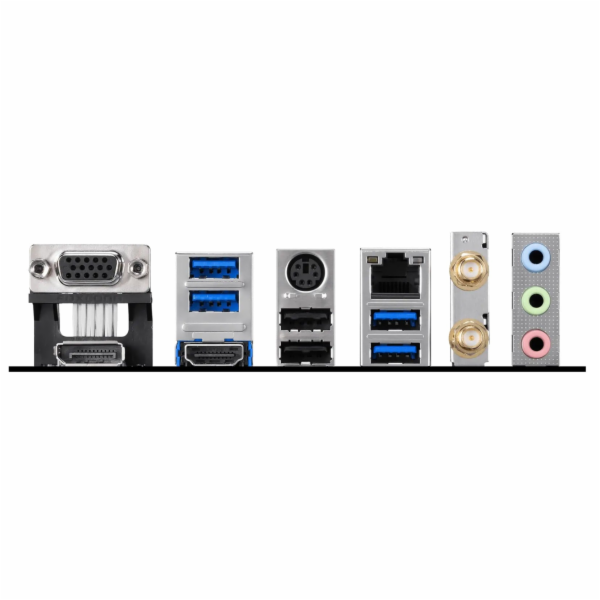

Porty na zadním panelu:

USB 5Gbps Type-A
Keyboard / Mouse
LAN Port
Wi-Fi / Bluetooth
Audio connectors
DisplayPort
HDMI™
USB 2.0
USB 5Gbps Type-A
OS: Windows 11 64-bit, Windows 10 64-bit
