Napájení notebooku LC-Power NB ACC LC-Power LC-NB-GAN-90-C 90W

Proudové špičky (OCP): ano
Přetížení (OVP): ano
Přehřátí (OTP): ano
Zkrat (SCP): ano
Vč. nabíjecího kabelu: ano
Délka kabelu (m): 1.8
USB: 1x USB-C
Max. výkon (Watt): 90
Vstupní napětí (V): 220 - 240
Výstupní napětí (V): 5 - 20
Barva: černá
Rozměry: 92 x 62 x 30
Hmotnost (g): 331

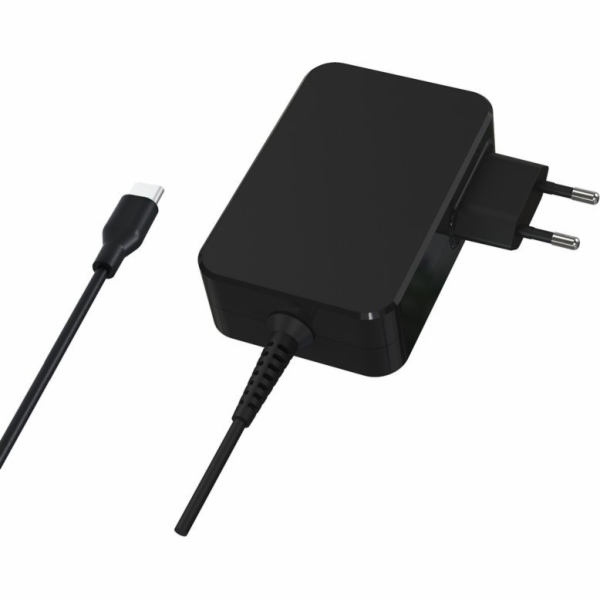

LC Power LC-NB-GAN-90-C

Thanks to the GaN technology, chargers can be built compactly, but at the same time offer an efficient and fast charging process.
The LC-NB-GAN-90-C has a USB-C charging port with a maximum output power of 90 W and can be used with almost any notebook or laptop. Terminal with USB-C power delivery charging port.

Features:


Output power: 90 W max
Output voltage: 5.0-20.0 V
Output current: 3.0-4.5 A
USB-C port
High efficiency of up to 90.3%
Stable performance, low residual ripple
Safety circuits:

overcurrent protection (OCP),
Overload protection (OLP),
Surge protection (OVP),
Overheating protection (OTP),
Short circuit protection (SCP)


Input voltage: 220-240 V (50 / 60 Hz)
Dimensions (device):  92 x 62 x 30 mm
Cable length: 180 cm
Colour: black
