Popis produktu

OCPP (Open Charge Point Protocol): ano
Stupeň ochrany (voda, prach): IP67
Stupeň ochrany (odolnost proti nárazu): IK10
DC senzor zbytkového proudu: ano
Ovládání přes aplikaci: ano
Tisk pomocí App od výrobce: My NRGkick
Bluetooth: ano
WLAN: ano
Síť (Ethernet): ne
mobilní: ne
Typ: Inteligentní nabíjecí stanice
Max. nabíjecí výkon (kW): 22
Typ zástrčky: Typ 2
Nabíjecí kabel: včetně
Délka kabelu (m): 7.5
Barva: bílá / modrá
Rozměry: 216 x 90 x 64
Hmotnost (g): 4900

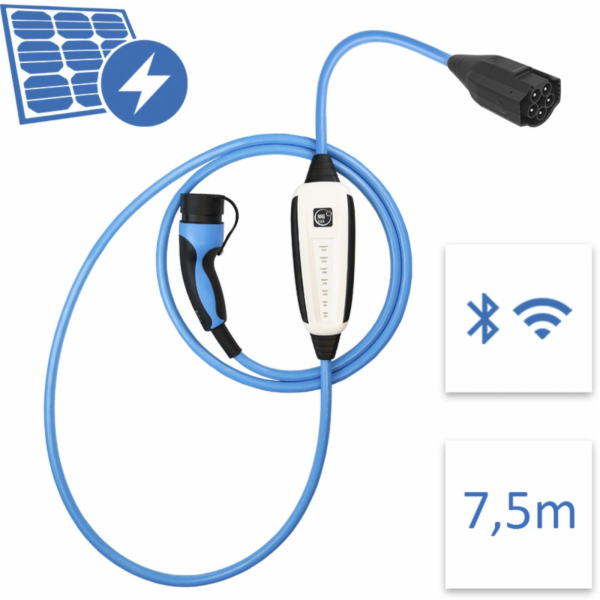

NRGkick 32A Pure for PV users 7.5m Standard WLAN

32A/22kW, Type 2, 7.5m, WiFi + Bluetooth

Scope of delivery and features:


Charging unit NRGkick 32A 7.5m
Maximum charging current up to 32 amps - corresponds to maximum charging power of up to 22kW
Communication interfaces: Bluetooth, WiFi, Cloud, Web API
Type 2 plug on vehicle side
Including Smart Service "Photovoltaic-guided charging for NRGkick"
Smart Attachment not included (sold separately)


Features:


Easy, fastest possible charging at all sockets and charging stations
Transportable
WiFi + Bluetooth included
Free app & cloud
Temperature monitoring and overheating protection
Blackout protection
Under-/overvoltage protection
Protection from wrongly wired sockets
Hot-unplug detection with arc protection
Innovative high-level safety connector system
Ready for grid-supportive charging
Automatic, assignable charging reports
Additional features (e.g. OCPP, photovoltaic-led charging with phase transition,...) inexpensively upgradeable via NRGkick app


NRGkick is everything your electric vehicle needs to charge
The highly innovative NRGkick portable charging unit is a safe and smart charging unit. With NRGkick, it is possible to charge as quickly as possible at any standard outlet and even at public charging stations (with up to 22 kW, 1-/2-/3-phase). The innovative high-level safety connector system with temperature monitoring at each phase pin ensures that scorched sockets are ruled out - whether CEE32, CEE16 or domestic sockets.
Innovations such as autonomous load management, blackout protection, locally assignable charging reports via WiFi and the possibility to upgrade further functions via the app at any time (such as photovoltaic-led charging with phase transition in the near future) prove that with NRGkick you are not only technically on the cutting edge, but far beyond it!

Fastest possible charging (up to 22 kW)
With NRGkick, all electric vehicles with Type 2 interface, whether 1-, 2- or 3-phase, can be charged at the maximum possible AC charging speed (up to 22 kW). Compared to the "emergency charging cable" for household sockets, this means that charging is up to 10 times faster and you can start your next journey fully charged in the shortest possible time instead of waiting many hours.

Simple and straightforward
With NRGkick, you don t have to spend a lot of time with planning and installing: NRGkick can be used immediately at any standard socket and also at public charging stations using the optionally available Type 2 plug attachment. This means you can charge your electric car wherever there is electricity and simply have your "wallbox" with you when you need it! Of course, you can also leave NRGkick permanently connected to your power outlet - it is absolutely temperature-resistant and even rain cannot harm it.

No installation necessary
A huge advantage of the NRGkick charging unit is that nothing more than an electrical outlet is required - so unlike wallboxes, complicated installations are unnecessary, saving a lot of time and money. The residual current protection mechanism for AC and DC fault currents, which would otherwise have to be installed separately, is also already included.

Suitable for all sockets and charging columns
NRGkick Smart Attachments are available for all standard sockets and also for public charging stations. So NRGkick is really all your electric vehicle needs for charging.
When connecting to standard household sockets, NRGkick of course observes the respective country-specific regulations - for example, in Switzerland, electric vehicles may only be charged at a maximum of 8A at household sockets. With NRGkick, you can be sure that all specifications are correctly adhered to.
Thanks to the Type 2 Smart Attachment, you can also charge with NRGkick at public charging stations and thus dispense the additional Mode 3 cable that would otherwise be required.

Safe charging unit
NRGkick offers a wide range of safety features, some of which have never been seen before, such as the innovative high-level safety connector system with hot-unplug detection and arc protection, as well as temperature monitoring for each Smart Attachment on each individual phase pin! For domestic plug attachments, we record the temperature on both pins. Scorched sockets are a thing of the past once and for all!
But these are only two of an incredible number of safety functions, NRGkick offers with blackout protection and undervoltage protection, overvoltage protection, phase shift detection, wrong connection test, switch contact diagnosis, protective conductor test by means of loop impedance measurement, included residual current protection (AC, DC + 6 mA), mains frequency diagnosis, automatic self-test and many, many more other functions!

Extremely robust
Of course, safety also includes the fact that NRGkick is extremely resistant to external influences and tampering by third parties. Therefore, the loading unit has the highest load values and a variety of functions to ensure this, such as:
Anti-theft and tampering protection, drive-over protection, temperature resistance -40 to +70 °C (operating temperature), water- and dustproof (IP67), shock and impact resistance (IK10), soft components on charging unit and Connector Unit for optimal haptics and scratch protection, high number of mating cycles due to silver coating of all plug attachment contact parts.

Innovative high-level safety connector system
The NRGkick s innovative high-level safety connector system incorporates unique features. It consists of the Connector Unit and Smart Attachments, which are available for all standard sockets as well as for public charging stations. So NRGkick is indeed everything an electric vehicle driver ever needs to charge his vehicle anywhere there is electricity!
However, the system scores with many more features. For example, it enables temperature measurement - and this for each individual Smart Attachment and here even at each individual phase pin. In the case of domestic Smart Attachments, the temperature is recorded on both pins. Scorched sockets are therefore impossible with NRGkick!
Another unique feature is the fully automatic hot-unplug detection of the system. This ensures that when disconnecting the charging unit from the power supply, no dangerous arcs can occur for you and your socket.
An additional LED display on the Connector Unit, haptic optimisation through the use of soft components, the avoidance of any "cable tangle" and many other functions make the safety plug system an outstanding innovation!

Thermo-protect temperature management
If a socket becomes too hot, this is detected thanks to the temperature monitoring of the Smart Attachments at each phase pin. Thus NRGkick is able to regulate the charging current completely independently by means of the included temperature management and to guarantee a safe operation without danger.  For household sockets, both pins are temperature monitored, so there is always absolute safety for charging unit AND socket - no matter at which connection!

Autonomous load management and blackout protection
An absolutely outstanding feature: NRGkick brings autonomous load management and protects against blackouts! This means: If NRGkick detects that the voltage drops too much due to a high load in the grid, the charging current is automatically regulated so that the power grid can "recover" or stabilise.
Unlike other load management sys

---
