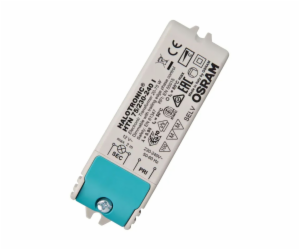

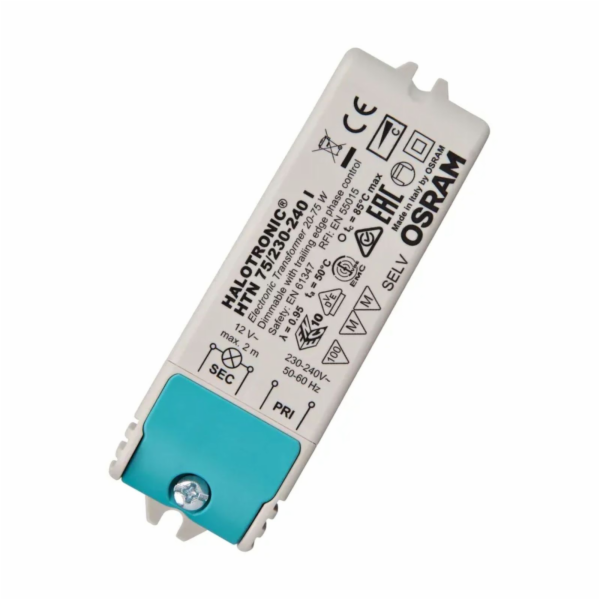

Osram Halotronic transformátorová myš HTN 75/230-240

Max. spínací výkon (watt): 75
Vstupní napětí (V): 230 - 240
Výstupní napětí (V): 11,5
Apple HomeKit: ne
Amazon Alexa: ne
Google Assistant: ne
IFTTT: ne
Z-Wave: ne
ZigBee: ne
WiFi: ne
Typ: Elektronický transformátor
Oblast použití: Interiér
Barva: bílá
Rozměry: 104 x 53 x 22
Hmotnost (g): 68

Osram Halotronic Transformer Mouse HTN 75/230-240

Features:


Very low power loss due to high efficiency
Suitable for space-critical installation thanks to compact, functional design
Extremely compact transformer for very space-critical installation conditions (HTN)
Lamp-friendly operation across the entire partial load range for long lamp life
Lamp wattage: 20 - 75 W
Maximum output power: 75 W
Mains current: 0.32 A (effective)
Rated voltage: 230 - 240 V
Mains power factor: ? 0.95
Operating frequency: 50 kHz (approx.)
Nominal output voltage: 11.5 V / 11.7 V (at 70 W / 20 W)
Input voltage: AC 207 - 254 V
Mains frequency: 50 - 60 Hz
System power: 79.00 W
Efficiency at full load: 95 %
Input voltage range: 230 - 240 V
Max. No. ECG on fuse aut. 10 A (B): 37
Max. No. ECGs on fuse aut. 16 A (B): 59
Galvanic isolation primary/secondary: 4.00 kV (effective)
Inrush current: 0.37 A (maximum)
Dimensions: 104 x 53 x 22 mm
Weight: 68 g
