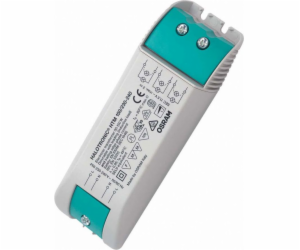

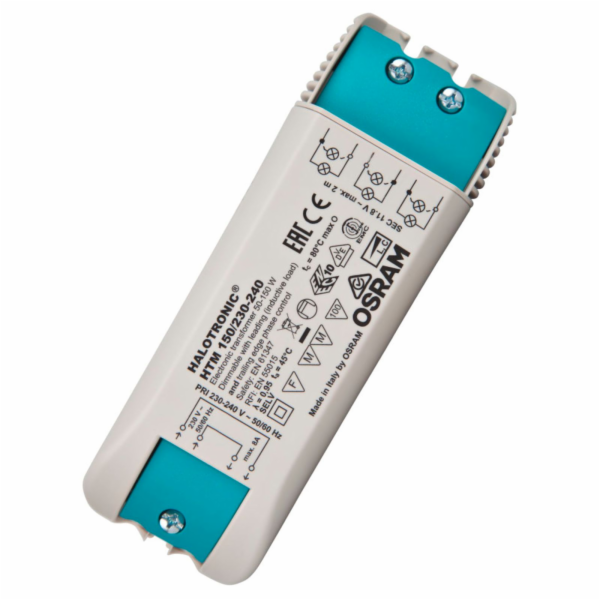

Osram Halotronic-Trafo Mouse HTM 150/230-240

Max. spínací výkon (watt): 150
Vstupní napětí (V): 230 - 240
Apple HomeKit: ne
Amazon Alexa: ne
Google Assistant: ne
IFTTT: ne
Z-Wave: ne
ZigBee: ne
Typ: Electronic Transformer
Oblast použití: Interiér
Barva: bílá
Rozměry: 153 x 54 x 36
Hmotnost (g): 185

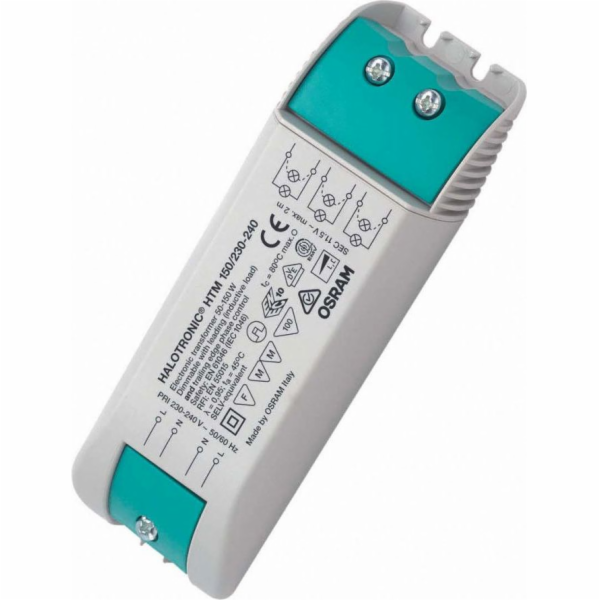

Osram Halotronic transformer Mouse HTM 150/230-240

Features:


Short-circuit protection, overload protection, overtemperature protection: electronically reversible
Galvanic isolation between primary and secondary side
Dimmable via leading edge phase control (without HTN) and trailing edge phase control
Very low power loss due to high efficiency
Strain relief suitable for different cable types (HTM)
Suitable for space-critical installation thanks to compact, functional design
Extremely compact transformer for very space-critical installation conditions (HTN)
Lamp-friendly operation in the entire partial load range for long lamps
Lamp wattage: 50 - 150 W
Maximum output power: 150 W
Mains current: 0.57 A (effective)
Rated voltage: 230...240 V
Mains power factor: ? 0.99
Operating frequency: 40 kHz (approx.)
Nominal output voltage: 11.4 / 11.5 V (at 150 / 50 W)
Input voltage: AC 207 - 264 V
Mains frequency: 50 - 60 Hz
System power: 157.00 W
Efficiency at full load: 95 %
Input voltage range: 230 - 240 V
Max. No. ECG on automatic fuse: 10 A (B) 16
Max. No. ECGs on automatic fuse: 16 A (B) 26
Galvanic isolation primary/secondary: 4.00 kV (effective)
Inrush current: 1.1 A (maximum)
Dimensions: 153 x 54 x 36 mm
Weight: 185 g
