p Bnnenstuhl Prof. Construction Power Distrib. BSV 5-32A FI TypB

Počet: 1x
Provedení: CEE
Konstrukce: Zástrčka
Počet zásuvek: 9
Oblast použití: Interiér / Exteriér
Počet: 3x
Provedení: CEE
Nadstavba: zdířka
Typ: Elektrický rozvaděč
Délka kabelu (m): 2.0
Barva: černá
Počet: 6x
Provedení: Ochranný kontakt (Typ F)
Konstrukce: zdířka

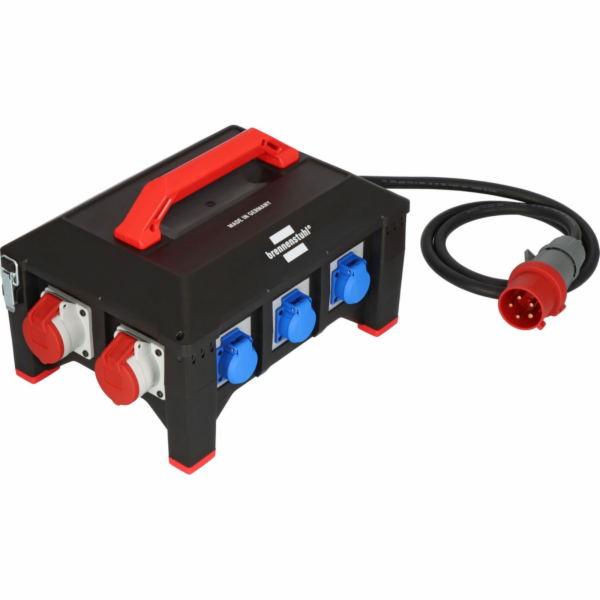

Brennenstuhl Professional Construction Machine BS V 5-32A FI type B

The Professional rubber construction distributor with 2 m oil-resistant RN cable (H07RN-F 5G6,0) is used to increase safety for people and environment on construction sites thanks to the type B fault current protection device.This FI protection based on the standard VDE 0100-704:2018-10 and will provide even more safety on construction sites in the future. The type B residual current protection device is required because smooth or nearly smooth direct fault currents occur that are not detected by a type A residual current protection circuit breaker. Comprehensive protection of people and equipment is therefore only guaranteed with an all-current type B fault current device (in accordance with the new standard DIN VDE 0100-704). The extremely robust construction site distributor with self-closing lid with practical quick-release lock and sturdy hinges is resistant to various oils, greases, petrol and acids, UV and ozone radiation.

Features:


With FI type B (all current sensitive) circuit breaker 30mA
Highest operational reliability by connecting each individual 230V protective contact socket to an LS switch
Connected power from 11 to 22 kVA
Operation of several consumers at one AC/DC connection point with plug-in systems according to IEC 60309
Protection class: IP44
Rated current (FI): 40A
Number of poles (FI): 4
Number of circuit breakers: 6 (2x LS 400V/16A 3-pin/pin; 6x LS 230V/16A 1-pin/pin)
Plug system connector: CEE 32A 3P+N+PE (5p) 400V
CEE socket - 16A: CEE 2x 16A 3P+N+PE (5p) 400V
CEE socket - 32A: CEE 1x 32A 3P+N+PE (5p) 400V
Protective contact sockets: 6
FI switch: FI with IFN 0.03 A (standard)
For use on construction sites according to DGUV 203-006 (formerly BGI 608) and constant use outdoors
Category 2 equipment (K2 DGUV 203-005): Used for rough operation with high mechanical, physical and chemical effects
Nominal input voltage: 400 V
Number of protective contact sockets: 6
Number of CEE sockets total: 3
Number of sockets: 9
Cable length: 2 m
Colour: black / red
